Power Supply

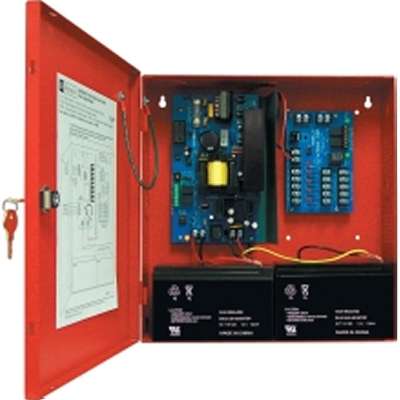

Altronix 5 Output Power Supply/Charger with Fire Ala
- Filtered and electronically regulated outputs
- Short circuit and thermal overload protection
- Built-in charger for sealed lead acid or gel type battery backup
- Maximum charge current 0.7 amp
- Zero voltage drop upon transfer to battery backup
- AC fail supervision
- Low battery and battery presence supervision
- Accommodates up to two (2) 12VDC/7AH batteries
AED2,799.00
Model AL600ULMR is specifically designed for use with access control systems and accessories. This unit converts a 115VAC 60Hz input into five (5) PTC protected 12VDC or 24VDC @ 6 amp Class 2 Rated power limited outputs.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | 5 Output Power Supply/Charger with Fire Ala |
| Manufacturer Part Number | AL600ULMR |
| Product Type | Proprietary Power Supply |
| Power Description | |
| Input Voltage | 115 V AC |
| Output Voltage | 12 V DC, 24 V DC |
| Input Voltage Type | AC |
| Input Current | 2.5 A @ 110V |
| Physical Characteristics | |
| Height | 13.5″ |
| Width | 13″ |
| Depth | 3.3″ |
| Other Information | |
| Status Indicators | AC input and DC output LED indicators |
