Altronix Multi-Agency Approved Power Supply/Charger – UL Listed

The AL300ULX is a power limited supply/chargers that will convert a 115 VAC / 60Hz input, into a power limit-ed 12VDC or 24VDC output, (see specifications). It is intended for use in applications requiring UL Listing for access control (UL294), Fire Alarm (UL1481) and Burglar Alarm Installations (UL603).

• UL294 for use with access control systems.

• UL1481 Fire Alarm systems.

• UL603 Burglar Alarm Installations.

• NYC Department of Buildings Approved (MEA).

• California State Fire Marshal Approved (CSFM).

• CSA approved (Canada).

• NFPA 72 compliant.

• Switch selectable 12VDC or 24VDC power limited output.

• Class 2 rated.

• Input 115VAC / 60Hz, .9 amp.

• Maximum charge current 600mA.

• 2.5 AMP continuous supply current at 12VDC or 24VDC.

• Filtered and electronically regulated outputs.

• Built-in charger for sealed lead acid or gel type batteries.

• Automatic switch over to stand-by battery when AC fails.

• AC input and DC output LED indicators.

• AC fail supervision (form “C” contacts).

• Low battery supervision (form “C” contacts).

• Low battery disconnect prevents batteries from deep discharge.

• Thermal overload protection.

• Short circuit protection.

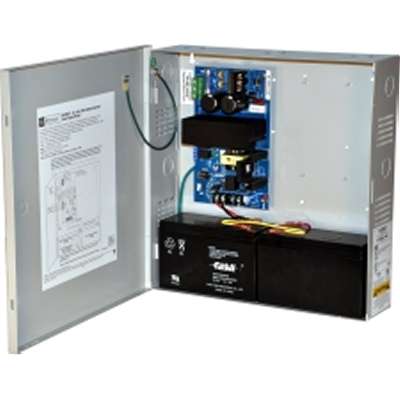

• Unit is complete with power supply, gray enclosure, cam lock and transformer.

• Includes battery leads.

• Enclosure Dimensions: 15.5H x 12W x 4.5D
