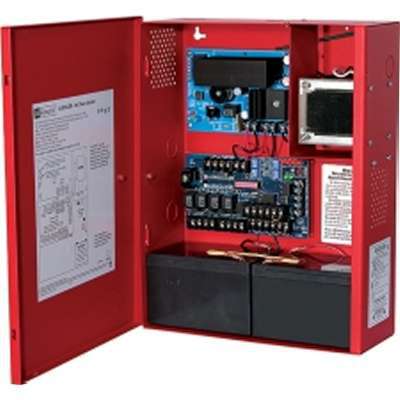

| The AL802ULADA are extremely cost effective voltage regulated remote NAC Power Extenders. They may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC) expansion (supports ADA requirements) and will provide auxiliary power to support system accessories. |
Compatibility
|
| Category | Specification |
|---|
| General Information |
| Product Name | NAC Power Extender – 24VDC @ 8 Amp. 2 – |
| Product Model | AL802ULADA |
| Product Type | Proprietary Power Supply |
| Technical Information |
| Protection Type | Thermal Overload, Short Circuit |
| Power Description |
| Input Voltage | 110 V AC |
| Input Voltage Type | AC |
| Input Current | 5 A @ 110V |
| Output Voltage | 24 V DC |
| Output Voltage Detail | 24 V DC @ 8 A |
| Output Current | 8 A |
| Physical Characteristics |
| Form Factor | Wall Mount |
| Height | 15.5″ |
| Width | 12.2″ |
| Depth | 4.5″ |
| Miscellaneous |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
