Network Switches & Routers
Altronix NetWaySP4WP – switch – 4 ports – managed NETWAYSP4WP
Availability:
10 in stock
AED3,299.00
10 in stock

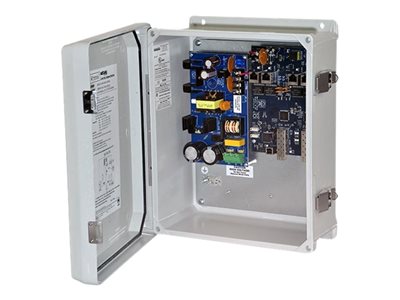

Altronix NEMA4 Outdoor Enclosure with Lockable Latch
Overview
Altronix NetWaySP4WP Outdoor PoE+ Hardened Switch provides two (2) 1Gb SFP (Fiber) ports and four (4) PoE+ (30W) or two (2) Hi-PoE (60W) ports, passing data for PoE/PoE+/ Hi-PoE compliant devices. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control and report power and diagnostics from anywhere.
Specifications
General
| Device Type | Switch – 4 ports – managed |
| Enclosure Type | Wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | High PoE / PoE+ |
| PoE Budget | 120 W |
| Features | Auto-negotiation, half duplex mode, full duplex mode, surge protection, rugged, LINQ Technology |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Status Indicators | Link OK, status, PoE |
Expansion / Connectivity
| Interfaces | 4 x 10/100/1000 Base-T RJ-45 4 ports (PoE+) / 2 ports (High PoE 60W) – 30 W 1 x Gigabit LAN SFP |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Electric Current Required | 1.3 – 2.5 A |
Miscellaneous
| Compliant Standards | UL, NEMA Type 4X, NEMA Type 4, UL 60950-1, IP66, UL 60950-22 |
Dimensions & Weight
| Width | 11.3 in |
| Depth | 5.6 in |
| Height | 13.3 in |
| Weight | 10.49 lbs |
Dimensions & Weight (Shipping)
| Shipping Weight | 11.9 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty – lifetime |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 85% |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Device Type | Switch – 4 ports – managed |
| Enclosure Type | Wall-mountable |
| Features | Auto-negotiation, half duplex mode, full duplex mode, surge protection, rugged, LINQ Technology |
| PoE Budget | 120 W |
| Ports | 4 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | High PoE / PoE+ |
| Status Indicators | Link OK, status, PoE |
| Subtype | Gigabit Ethernet |
| Dimensions & Weight | |
|---|---|
| Depth | 5.6 in |
| Height | 13.3 in |
| Weight | 10.49 lbs |
| Width | 11.3 in |
| Dimensions & Weight (Shipping) | |
|---|---|
| Shipping Weight | 11.9 lbs |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 85% |
| Max Operating Temperature | 167 °F |
| Max Storage Temperature | 185 °F |
| Min Operating Temperature | -40 °F |
| Min Storage Temperature | -40 °F |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 4 x 10/100/1000 Base-T RJ-45 4 ports (PoE+) / 2 ports (High PoE 60W) – 30 W ¦ 1 x Gigabit LAN SFP |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty – lifetime |
| Miscellaneous | |
|---|---|
| Compliant Standards | UL, NEMA Type 4X, NEMA Type 4, UL 60950-1, IP66, UL 60950-22 |
| Power | |
|---|---|
| Electric Current Required | 1.3 – 2.5 A |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
