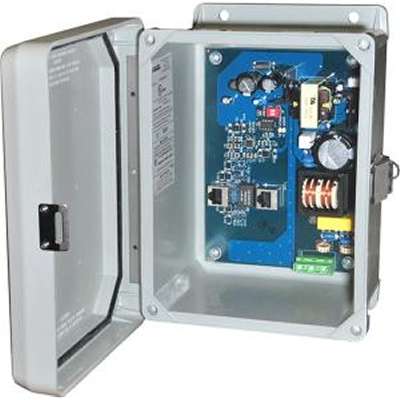

NetWay1DWP Outdoor Single Port Midspan Injector provides High PoE (60W) power and passes data for PoE compliant cameras/edge devices. Cameras/edge devices may be located up to 100m (328 ft.) from the unit. NetWay1DWPM includes built-in IP management facilitates remote device reset/control and status monitoring.
| Category | Specification |
|---|
| General Information |
| Product Name | Outdoor Single Port Midspan Injector – Provides Hi-PoE (60W) |
| Product Line | NetWay |
| Product Model | NetWay1DWP |
| Product Type | PoE Injector |
| Interfaces/Ports |
| Input Ports | 1 x 10/100/1000Base-T |
| Output Ports | 1 x 10/100/1000Base-T |
| Power Description |
| Input Voltage | 120 V AC / 230 V AC |
| Maximum Output Voltage | 56 V DC |
| Maximum Input Current | 1.20 A |
| Maximum Output Power | 60 W |
| Physical Characteristics |
| Form Factor | External |
| Height | 9.3″ |
| Width | 7.3″ |
| Depth | 4.9″ |
| Miscellaneous |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United States |
| Other Information |
| Product Family | NetWay |
| Maximum Frequency | 60 Hz |
| NDAA Compliant | Yes |
| Additional Information | Port Status LEDs |
