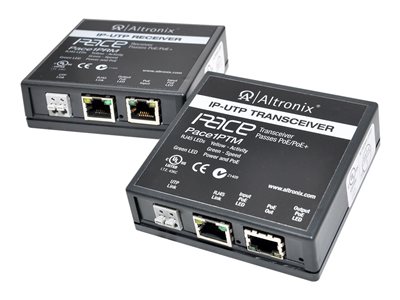

Altronix PACE1PRMT – transmitter and receiver – network/power extender – 10Mb LAN, 100Mb LAN
Altronix PACE1PRMT – Transmitter and receiver – network/power extender – 100Mb LAN – 10Base-T, 100Base-TX – up to 1640 ft
AED1,699.00
Altronix Pace1PRMT is a long range Ethernet adapter kit which transmits data at 100mbps full duplex and power via a single twisted pair (UTP) or CAT5e or higher cable in a PoE(+) compliant format. Pace1PRM receiver is powered via a PoE midspan, such as the Altronix Netway series, or by an endspan. The receiver passes the PoE(+) compliant power over the cable to Pace1PTM transceiver which, in turn, passes this power to an enabled IP camera/device. These plug and play units facilitate cost-effective solutions for IP devices that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over single twisted pair (UTP) or structured cable.
| General |
|---|
| Device Type | Network/power extender |
| Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Max Transfer Distance | 1640 ft |
| Status Indicators | PoE, link/activity |
| Features | Auto-negotiation, half duplex mode, full duplex mode |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Expansion / Connectivity |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX – RJ-45 female, 1 x network (PoE input) – RJ-45 |
| Miscellaneous |
| Compliant Standards | Plug and Play, UL, UL 60950-1 |
| Power |
| Power Over Ethernet (PoE) | PoE+ |
| Dimensions & Weight |
| Width | 3.5 in |
| Depth | 3.5 in |
| Height | 1 in |
| Weight | 6.35 oz |
| Dimensions & Weight (Shipping) |
| Shipping Weight | 15.87 oz |
| Environmental Parameters |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 120.2 °F |
| Humidity Range Operating | 0 – 85% (non-condensing) |
