Power Supply

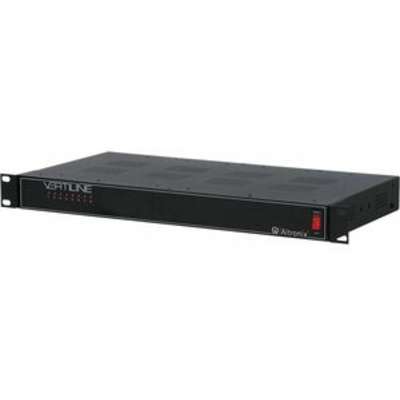

Altronix Power Supply, 8 PTC Outputs, 24VDC 8A,
- 220VAC input
- Eight (8) PTC protected outputs
- 12VDC (VertiLine3DV) or 24VDC (VertiLine6DV) PTC outputs
- Surge protection
- Individual power LED indicators
- Illuminated power disconnect circuit breaker with manual reset
- Removable terminal blocks with locking screw flanges
- CE European Conformity
AED4,499.00
Altronix VertiLine Rack Mount Power Supplies provide eight (8) filtered and electronically regulated power outputs in a space saving 1U EIA 19″ rack mount chassis. The units are available with either 12VDC or 24VDC power outputs.
| Category | Specification |
|---|
| General Information |
| Product Name | Power Supply, 8 PTC Outputs, 24VDC 8A |
| Product Line | VERTILINE |
| Product Series | VertiLineDV |
| Product Model | VERTILINE6DV |
| Product Type | Power Supply |
| Technical Information |
| Protection Type | Surge, Short Circuit, Thermal, Overload |
| Modular | Yes |
| Features | LED indicator |
| Environmental Conditions |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 120.2°F (49°C) |
| Power Description |
| Input Voltage | 230 V AC |
| Output Voltage | 24 V DC |
| Output Voltage Detail | 24 V DC @ 8 A |
| Output Current | 8 A |
| Physical Characteristics |
| Form Factor | Rack Mount, 1U |
| Height | 1.6″ |
| Width | 19.1″ |
| Depth | 8.5″ |
| Miscellaneous |
| Country of Origin | United States |
| Other Information |
| Product Family | VERTILINE VertiLineDV |
| Input Frequency | 60Hz |
