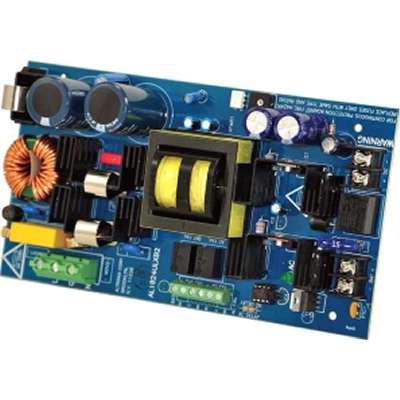

AL1024ULXB2 is a UL Recognized power supply/charger that converts a 115VAC, 60Hz input into a single 24VDC non power-limited output.
Certifications & Standards
|
| Category | Attribute | Details |
|---|
| General Information | Product Name | Power Supply Board 24VDC 10A |
| Product Model | AL1024ULXB2 |
| Product Type | Proprietary Power Supply |
| Technical Information | Protection Type | Thermal Overload, Short Circuit |
| Power Description | Input Voltage | 120 V AC |
| Output Voltage | 24 V DC |
| Output Voltage Detail | 24 V DC @ 8 A |
| Output Current | 8 A |
| Output Power | 483 W |
| Physical Characteristics | Form Factor | Board |
| Height | 2″ |
| Width | 4.5″ |
| Depth | 8.4″ |
| Miscellaneous | Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Other Information | Input Voltage Type | AC |
| NDAA Compliant | Yes |
| Status Indicators | LED |
| Input Current | 4.2 A @ 110V |
