Power Supply

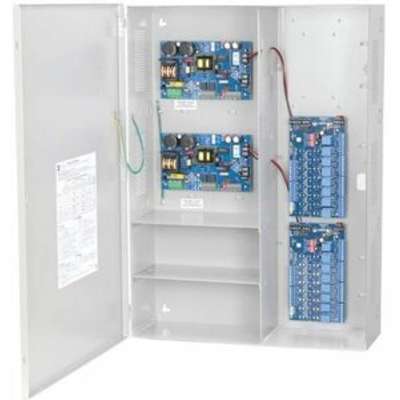

Altronix Power Supply/Charger with Access Power Controller – 16 PTC
- Sixteen (16) independently controlled Fail-Safe and/or Fail-Secure Class 2 Rated PTC protected power-limited outputs
- Sixteen (16) auxiliary power outputs (unswitched)
- Output PTCs are rated @ 2.5A
- Filtered and electronically regulated outputs
- Supervision: AC Fail Battery Fail and Battery Presence Low power shutdown
- Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs
- Alarm output relay indicates that FACP input is triggered
- Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input b) Polarity reversal input from FACP signaling circuit
- Built-in charger for sealed lead acid or gel type batteries
- Instantaneous transfer to stand-by batteries
- UL Listed in the U.S. and Canada
- CE European Conformity
AED8,799.00
| Altronix Maximal FD Series Access Power Controllers distribute and switch power to access control systems and accessories. They convert a 120VAC, 60Hz input into sixteen (16) independently controlled 12VDC or 24VDC Class 2 Rated PTC protected power-limited autoresettable outputs. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs. |
Compatibility
Compatible Devices:
|
| Category | Specification |
|---|
| General Information |
| Product Name | Power Supply/Charger with Access Power Controller – 16 PTC |
| Product Line | MAXIMAL |
| Product Series | FD |
| Product Model | MAXIMAL11FD |
| Product Type | Power Supply |
| Technical Information |
| Protection Type | Over Voltage |
| Features | LED indicator |
| Environmental Conditions |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 120.2°F (49°C) |
| Power Description |
| Input Voltage | 120 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 12 V DC, 24 V DC |
| Output Voltage Detail | 12 V DC @ 3.5 A, 24 V DC @ 3.5 A |
| Output Current | 3.50 A |
| Physical Characteristics |
| Form Factor | Enclosure |
| Height | 26″ |
| Width | 19″ |
| Depth | 6.3″ |
| Miscellaneous |
| Country of Origin | United States |
| Other Information |
| Product Family | MAXIMAL FD |
| Input Frequency | 60Hz |
| Certifications & Standards | CE |
