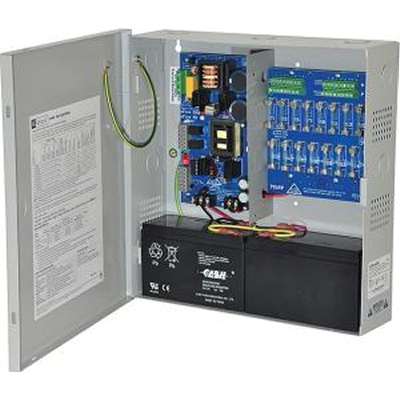

eFlow6N16 is a power supply/charger that converts a 120VAC 60Hz input into sixteen (16) fuse protected selectable 12VDC or 24VDC outputs with a total of 6 amps max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.
Compatibility
- Access Control System
- Burglar Alarm System
- Fire Protective Signaling System
| Category | Specification |
|---|
| General Information |
| Product Name | Power Supply/Charger with Fire Alarm Disconnect 12VDC or 24VDC |
| Product Line | eFlow |
| Product Model | eFlow6N16 |
| Product Type | Power Supply |
| Power Description |
| Input Voltage | 120 V AC |
| Number of +12V Rails | 16 |
| Output Voltage | 12 V DC, 24 V DC |
| Output Voltage Detail | 12 V DC @ 6 A, 24 V DC @ 6 A |
| Output Current | 6 A |
| Physical Characteristics |
| Form Factor | Wall Mount |
| Height | 13.5″ |
| Width | 13″ |
| Depth | 3.3″ |
| Miscellaneous |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Other Information |
| Product Family | eFlow |
