Power Injectors
Altronix Single Port 90W Injector 480W
- IEEE 802.3af (15W), IEEE 802.3at (30W), and IEEE 802.3bt (90W) compliant
- Universal (115VAC or 230VAC) power input
- Power provided using all 4 pairs on structured cable
- 10/100/1000Mbps, half/full duplex, auto negotiation
- Port provides up to 90W max
- PoE and Power LED
- Aux. Class 2 power-limited output rated @ 56VDC/90W
- Auto detection and protection of legacy non-PoE cameras/devices
- Extends Network link distance in an industrial environment
- CE European Conformity
AED1,799.00

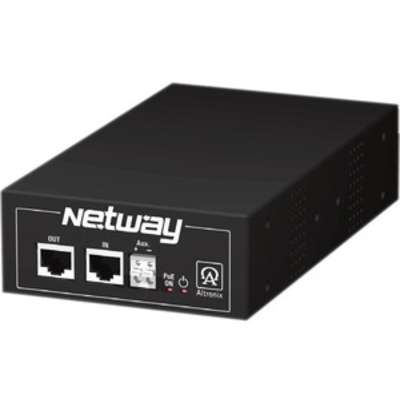

Altronix NetWay1BT is an single port midspan/injector that provides PoE/PoE+/Hi PoE up to 90W (802.3bt compliant) power per port and passes data at 10/100/1000 Mbps at distances up to 100m.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | Single Port 90W Injector 480W |
| Product Model | NETWAY1BT |
| Product Type | PoE Injector |
| Interfaces/Ports | |
| Input Ports | 1 x 10/100/1000Base-T |
| Output Ports | 1 x 10/100/1000Base-T |
| Power Description | |
| Input Voltage | 120 V AC / 230 V AC |
| Maximum Input Current | 750 mA |
| Maximum Output Power | 90 W |
| Physical Characteristics | |
| Height | 1.7″ |
| Width | 4.1″ |
| Depth | 7.2″ |
| Miscellaneous | |
| Country of Origin | United States |
| Other Information | |
| NDAA Compliant | Yes |
Based on 0 reviews
