Power Injectors

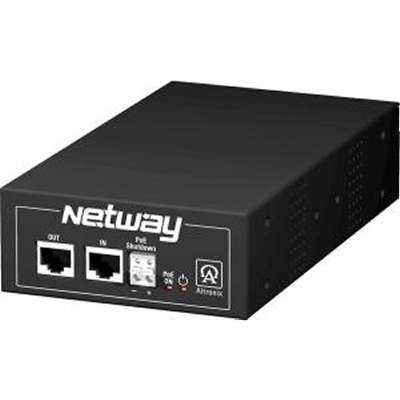

Altronix Single Port Midspan Injector – Single
- Single Port Midspan Injector.
- Single port provides PoE per IEEE 802.3af or PoE+ per IEEE 802.3at.
- PoE shutdown feature.
- 230VAC Input.
- UL and cUL listed, CE approved.
AED2,199.00
The Altronix Netway1EV is an enhanced 10/100/1000Base-T PoE+ midspan power injector. It is fully compliant and backwards compatible with PoE (15W) and PoE+ (25W) PoE devices. The NetWay1E is capable of sourcing up to 85W and is intended for use with LTPoE++™ 70W, 52.7W & 38.7W PD devices requiring up to 70W of device power at up to 100m (328′).
| Category | Specification |
|---|
| General Information |
| Product Name | Single Port Midspan Injector – Single |
| Product Line | NetWay |
| Product Model | NetWay1EV |
| Packaged Quantity | 1 |
| Product Type | PoE Injector |
| Interfaces/Ports |
| Input Ports | 1 x 10/100/1000Base-T |
| Output Ports | 1 x 10/100/1000Base-T |
| Power Description |
| Input Voltage | 220 V AC |
| Maximum Input Current | 750 mA |
| Maximum Output Power | 85 W |
| Physical Characteristics |
| Height | 1.7″ |
| Width | 4.1″ |
| Depth | 7.2″ |
| Miscellaneous |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United States |
| Other Information |
| Product Family | NetWay |
| Maximum Frequency | 50 Hz |
