Power Supply
Altronix Temperature Unavail Recommended (AL400X220)
- Available with 1 or 4 outputs
- Fused or PTC protected outputs
- Additional Class 2 Rated Aux. Output rated @ 1A
- Overvoltage protection
- Fire alarm disconnect
- Supervision AC Fail Battery Fail and Battery Presence Low power shutdown
- Built-in charger for sealed lead acid or gel type batteries
- Instantaneous transfer to stand-by batteries
- Short circuit and overload protection
- AC input and DC output LED indicators
- CE European Conformity
AED2,399.00

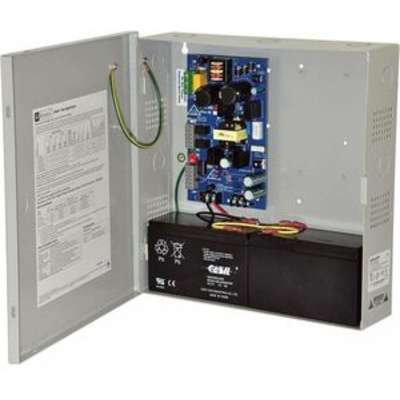

Altronix eFlow3NV series power supply/chargers convert a 220VAC (working range 198VAC – 256VAC), 50/60Hz input into a single fused or four (4) fuse/PTC protected outputs. Power supply/charger is selectable for 12VDC or 24VDC with a total of 2A max. They also offer a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | Temperature Unavail Recommended (AL400X220) |
| Product Line | eFlow |
| Product Series | 3NV |
| Product Model | eFlow3NV |
| Product Type | Power Supply |
| Technical Information | |
| Protection Type | Over Voltage, Short Circuit, Overload |
| Features | LED indicator |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 120.2°F (49°C) |
| Power Description | |
| Input Voltage | 230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 12 V DC, 24 V DC |
| Output Voltage Detail | 12 V DC @ 2 A, 24 V DC @ 2 A |
| Output Current | 2 A |
| Physical Characteristics | |
| Form Factor | Enclosure |
| Height | 13.5″ |
| Width | 13″ |
| Depth | 3.3″ |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | WEEE, RoHS |
| Other Information | |
| Product Family | eFlow 3NV |
| Input Frequency | 60Hz |
| Certifications & Standards | CE |
