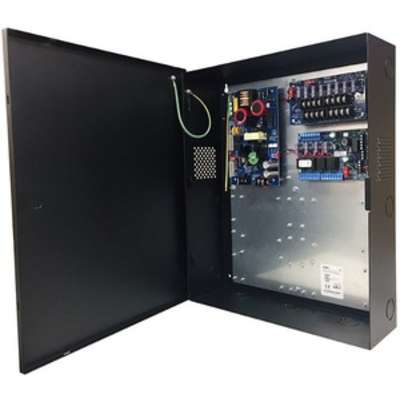

Altronix T1MK14SD kit consists of Trove1 enclosure and TM1 Altronix & Mercury backplane with 12VDC or 24VDC (factory set at 24VDC) @ 4A power supply/charger, 12VDC voltage regulator, eight (8) PTC protected output dual voltage power distribution module and four (4) PTC protected output access control module. This kit also accommodates various combinations of Mercury* boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
| Category | Attribute | Value |
|---|---|---|
| General Information | Product Name | TROVE1M1/12@4A/24@3A/PDS8CB |
| Manufacturer Part Number | T1MK14SD | |
| Product Line | Trove | |
| Product Type | Power Integration Kit | |
| Physical Characteristics | Dimensions | 14.5″W x 18″H x 4.62″D (368.3 mm W x 457.2 mm H x 118 mm D) |
| Miscellaneous | Environmentally Friendly | Yes |
| Country of Origin | United States | |
| Other Information | Maximum Operating Temperature | 120.2°F (49°C) |
| Frequency | 60 Hz | |
| Input Current | 3.50 A | |
| Input Voltage | 115 V AC | |
| Output Voltage | 24 V DC, 12 V DC |
