Amer SD4P1 – switch – 5 ports SD4P1
10 in stock
AED299.00
10 in stock

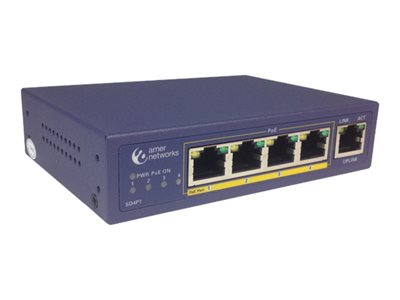

Amer – Switch – 5 Ports – Desktop, Wall-Mountable – Black
Overview
Designed for use with Power over Ethernet (PoE) devices, the SD4P1 switch provides up to 15.4W of power to 802. af PoE compatible devices connected to the switch’s PoE ports. The Switch allows these devices to draw power from the switch and remove the need for a power adapter. Some devices that may have support for 802.3af are Wireless Access Points, IP Phones and IP cameras. The Switch’s ports automatically negotiate between 10BASE-T and 100BASE-TX network speeds, as well as between full and half duplex modes, so any port can connect to a Fast Ethernet or Ethernet network. The ports also support Auto MDIX, allowing the automatic detection of a straight through or cross-over cable, this feature reduces support problems commonly caused by incorrect cable usage.
- LED indicator
- Half-duplex back pressure and IEEE802.3X full-duplex flow control
Specifications
| Device Type | Switch – 5 ports |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Fast Ethernet |
| Ports | 4 x 10/100 (PoE) + 1 x 10/100 |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 60 W |
| Performance | Switching capacity: 1 Gbps |
| MAC Address Table Size | 1K entries |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, 96KB packet buffer |
| Compliant Standards | IEEE 802.3i, IEEE 802.3af, IEEE 802.3x |
| Status Indicators | Port transmission speed, power, PoE, link/activity |
| Interfaces | 1 x 100Base-TX RJ-45 uplink 4 x 100Base-TX RJ-45 PoE – 15.4 W |
| Power Device | External power adapter |
| Power Consumption Operational | 70 Watt |
| Compliant Standards | FCC |
| Width | 4.6 in |
| Depth | 3.3 in |
| Height | 1.1 in |
| Weight | 9.88 oz |
| Service & Support | Limited warranty – 3 years |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 – 85% (non-condensing) |
| Min Storage Temperature | 14 °F |
| Max Storage Temperature | 158 °F |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3i, IEEE 802.3af, IEEE 802.3x |
| Device Type | Switch – 5 ports |
| Enclosure Type | Desktop, wall-mountable |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, 96KB packet buffer |
| MAC Address Table Size | 1K entries |
| Performance | Switching capacity: 1 Gbps |
| PoE Budget | 60 W |
| Ports | 4 x 10/100 (PoE) + 1 x 10/100 |
| Power Over Ethernet (PoE) | PoE |
| Status Indicators | Port transmission speed, power, PoE, link/activity |
| Subtype | Fast Ethernet |
| Dimensions & Weight | |
|---|---|
| Depth | 3.3 in |
| Height | 1.1 in |
| Weight | 9.88 oz |
| Width | 4.6 in |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 20 – 85% (non-condensing) |
| Max Operating Temperature | 104 °F |
| Max Storage Temperature | 158 °F |
| Min Operating Temperature | 32 °F |
| Min Storage Temperature | 14 °F |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 1 x 100Base-TX RJ-45 uplink ¦ 4 x 100Base-TX RJ-45 PoE – 15.4 W |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty – 3 years |
| Miscellaneous | |
|---|---|
| Compliant Standards | FCC |
| Power | |
|---|---|
| Power Consumption Operational | 70 Watt |
| Power Device | External power adapter |
