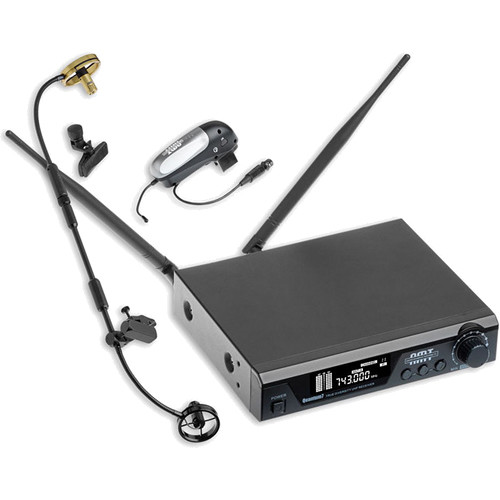

AMT Q7-TA6 Multipurpose Wireless Microphone System


AED5,299.00

AMT Quantum 7Ā Overview

TheĀ Q7-TA6 Multipurpose Wireless Microphone SystemĀ fromĀ AMTĀ is designed for use with soprano, alto, tenor, and baritone saxophone applications. It consists of the company’s TA6 Double Collapsible Multipurpose Microphone System and the Quantum7 Wireless System. The Q7 receiver features a true diversity design, allowing a wireless reception of up to 328.1′ / 100 m. It offers high-quality transient response, no delay, no background noise, and a multi-level narrow band filter technology. The TA6 is a multi-purpose microphone which can be used as a double microphone setup for soprano saxophone or can be reduced to a single microphone for tenor, alto, and baritone saxophones.

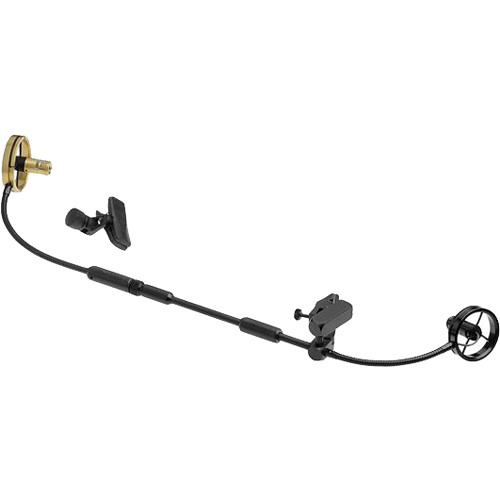

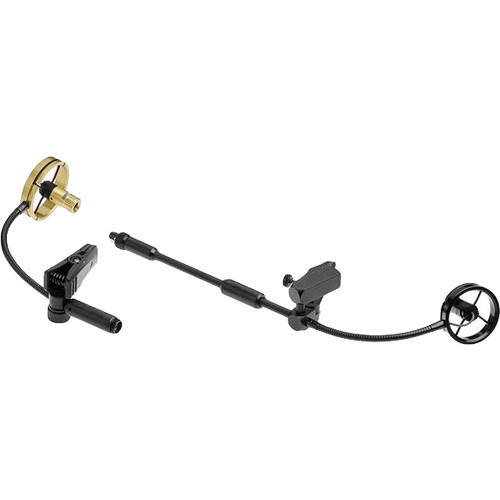

AMT Ta6 Double Collapsible Multi-purpose Microphone System

TheĀ Ta6 Double Collapsible Microphone SystemĀ fromĀ AMTĀ is a multi-purpose microphone system for soprano, tenor, alto, and bari saxophones. The microphone can be used as a double microphone setup for soprano saxophone, but can be reduced to a single microphone for tenor, alto, and bari saxophones. With an optional extension kit, the Ta6 can also work with straight alto and straight tenor saxophones, and can be used with Shure, Sennheiser, and Sabine wireless systems with optional cables.

Compatibility

Soprano, tenor, alto, and bari saxophones
  • 2-in-1 microphone system

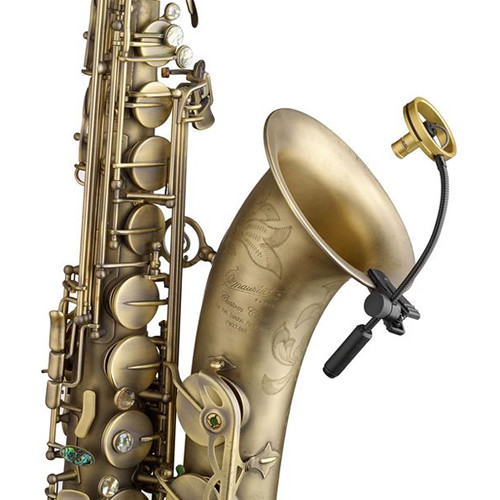

  • Flexible single microphone clamp allows placement on any flanged bell instrument
  • Includes disconnect and double mic/iso-ring suspension system
  • Predetermined mix between two mics
  • Suitable for AMT Wi5C, Wi5IIB, Wi5IIC, and Q7 wireless systems

AMT Q7-LS Wireless Microphone System for Saxophone (902 to 928 MHz)

TheĀ AMTĀ Q7-LSĀ is a true-diversity wireless microphone system for saxophone that includes a clip-on transmitter with an LS sax mic and a single-channel, half-rack receiver. The system offers 100 preset, user-selectable operating frequencies in the 902 to 928 MHz band to choose from, and it’s simple to use while providing professional quality sound.

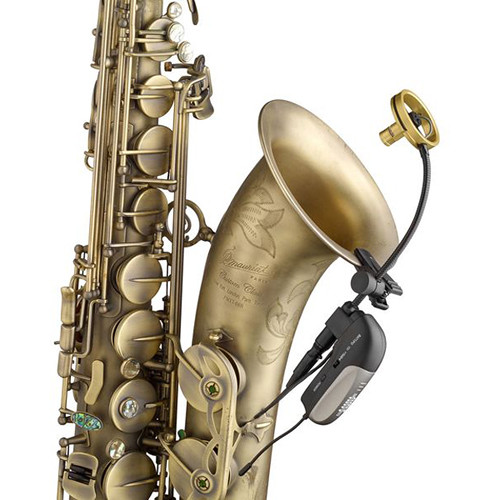

The Q7 transmitter works with all AMT instrument microphones featuring a TA3 mini-XLR connector to plug into the transmitter, allowing you to swap out the sax mic for other microphone options (available separately). The LS mic for saxophone included in this configuration offers an adjustable gooseneck for optimal positioning and aĀ shockmount that absorbs most of the handling noise produced by the instrument’s keys and valves. The transmitter simply clips to the bell of the instrument and sends wireless audio to the receiver at a range of up to 328′.

The all-metal, half-rack size receiver features dual antennas with true-diversity reception to reduce interference and dropouts. The system offers 100 preset, user-selectable operating frequencies to choose from and a backlit LCD screen. Once a frequency is selected, the transmitter is easily synced to the same channel via infrared. Additional transmitters and receivers (available separately) can be added to expand the system for additional musicians, allowing you to use up to 5 systems at once in the same channel group. The receiver provides both a 1/4″ and an XLR output for connecting to a wide range of audio gear. Two antennas, rack ears, and a 1/4″ connection cable are included.

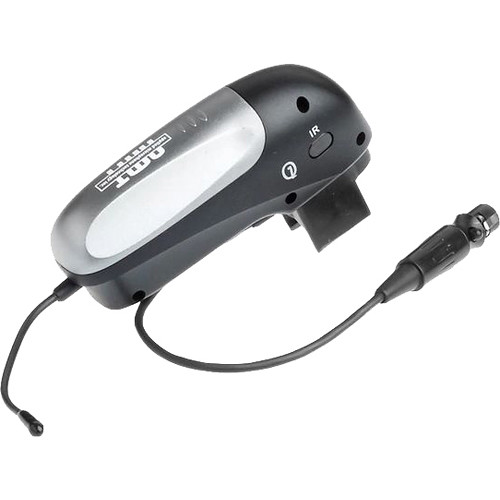

  • Clip-on transmitter powered by one AA battery for up to 14 hours
  • Saxophone mic, with gooseneck for positioning, plugs into transmitter—no bodypack needed
  • Transmitter compatible with all AMT instrument microphones with TA3 connectors
  • Remove transmitter to convert microphone to a wired setup
  • Q7 receiver includes heavy-duty metal chassis
  • True-diversity reception reduces dropouts and interference
  • PLL frequency stabilization system
  • 100 preset frequencies available to find an interference-free operating transmission channel
  • IR sync easily links transmitterĀ to receiver’s operating frequency
  • LCD screen shows radio frequency (RF), audio frequency (AF), group, and channel settings
  • EIA standard 1/2 RU metal chassis
  • Rack-mountable—rack ears included
  • Designed specifically with fast transient response for acoustic musical instruments
  • Large, analog-style volume control for quick and easy access

AMT Ta6 Double Collapsible Multi-Purpose Microphone SystemĀ Specs

Microphone
Capsule Condenser
Polar Pattern Cardioid
Performance
Frequency Range 50 Hz to 18 kHz
Impedance 150 Ohms
Connectivity
Output Connectors (Analog) 1 xĀ XLR 3-Pin
Cable Length 6′ / 1.8Ā m
Power
Operating Voltage 11 to 52 V
Battery Type 1 xĀ 9 V
Physical
Dimensions L: 3.5″ / L: 8.89Ā cm (Gooseneck)
Weight 1.27Ā oz / 36Ā g
Packaging Info
Package Weight 2.85 lb
Box Dimensions (LxWxH) 15.3 x 10.9 x 3.8″

AMT Q7-LS Wireless Microphone System For Saxophone (902 To 928 MHz)Ā Specs

System
Wireless Transmission Analog UHF
Number of RF Channels 100
Included Transmitters 1 xĀ Clip-On
Diversity True Diversity
RF Frequency Band 902 to 928 MHz
RF Bandwidth 26 MHz
RF Channel Scanning Manual
Max Operating Range 328.1′ / 100Ā m
Max Systems per Setup 5
Dynamic Range >100 dB
Encryption None
Deviation ±48 kHz
Modulation FM
Receiver
Form Factor Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 xĀ 1/4 Wave External, TNC (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 xĀ XLR 3-Pin Male Balanced Output
1 xĀ 1/4″ TS Female Unbalanced Output
Frequency Response 60 Hz to 17 kHz
Word Clock I/O None
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 to 18 VDC at 500 mA (Included)
Display & Indicators Backlit LCD (AF Level, Channel, Frequency, Group, RF Level, Sync)
Housing Metal
Operating Temperature 14 to 122°F / -10 to 50°C
Dimensions 8.3 x 1.7 x 6.7″ / 210 x 44 x 170Ā mm
Transmitter 1
Transmitter
Form Factor Clip-On
RF Output Power 10 mW
Audio I/O 1 xĀ TA3/Mini XLR 3-Pin Female Input
Plug-In Power 1.2 to 1.5 V
Muting Mute Switch
Auto-Level Control No
Sync Method IR
Antenna 1/4 Wave Wire, Fixed
Power Requirements Battery
Battery Type 1 xĀ AA
Approx. Battery Life 14 Hours
Display & Indicators LED (Battery Status, Power)
Dimensions 1 x 4.5 x 2.4″ / 25 x 115 x 62Ā mm
Microphone
Form Factor Clip-On Instrument
Instrument Mic Type Saxophone
Sound Field Mono
Capsule Condenser
Output Connectors 1 xĀ TA3/Mini XLR 3-Pin Male
Packaging Info
Package Weight 4.65 lb
Box Dimensions (LxWxH) 15.1 x 11.7 x 4.7″
