AMT Quantum7 Wireless System


2,799.00 د.إ

AMT Quantum 7Ā Overview

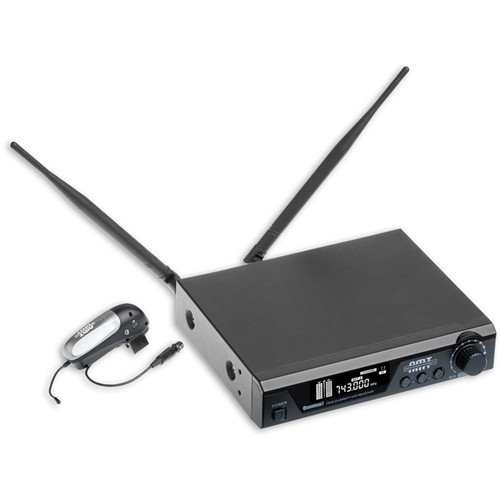

TheĀ Quantum7 Wireless SystemĀ fromĀ AMTĀ includes a Q7 AA powered transmitter with true diversity receiver, rack ears, and extension cables. The Quantum7 transmitter clips on to all AMT microphones that include DCT. You simply need to disconnect the cable from the microphone and plug in the transmitter. With 100 channels to choose from (region dependent), the system is simple to use while providing good quality sound. The receiver is a true diversity design allowing the wireless reception up to approximately 328′. The receiver is constructed with a rugged metal chassis, which includes a 1/4″ and XLR output. Additionally it features high-quality transient response, no delay, no background noise, with multi-level narrow band filter technology.

True diversity design
Transmitter can be powered via one AA battery
Q7 receiver includes heavy-duty metal chassis with rack ears
Supports 100 channels (region dependent) with up to 30 MHz bandwidth
PLL frequency stabilization system
Supports IR syncing from receiver to transmitter
LCD display
Wireless operation without a bodypack
Large analog style volume control for quick and easy access
Remove the transmitter to convert microphone to a wired setup
Compatible with all AMT instrument microphones

AMT Quantum 7Ā Specs

Receiver
Frequency Range 600 to 928 MHz
Modulation Mode FM
Dynamic Range >100 dB
Frequency Response ± 3dB 60 Hz to 17 kHz
Total Harmonic Distortion 105 dB
Audio Output 1 x XLR socket, 1 x 1/4″ (6.3 mm) jack socket
Power Supply 12 to 18 VDC; 500 mA
Dimensions 8.3 x 6.7 x 1.7″ (21.0 x 17.0 x 4.4 cm)
Transmitter
Frequency Range 600 to 928 MHz
RF Power 10 mW
Deviation ±48 kHz
Antenna 1/4 wavelength wire type
Battery Voltage 1.5 V (1 x 1.5 V AA battery)
Operating Time 12 to 14 hours, battery-dependent
