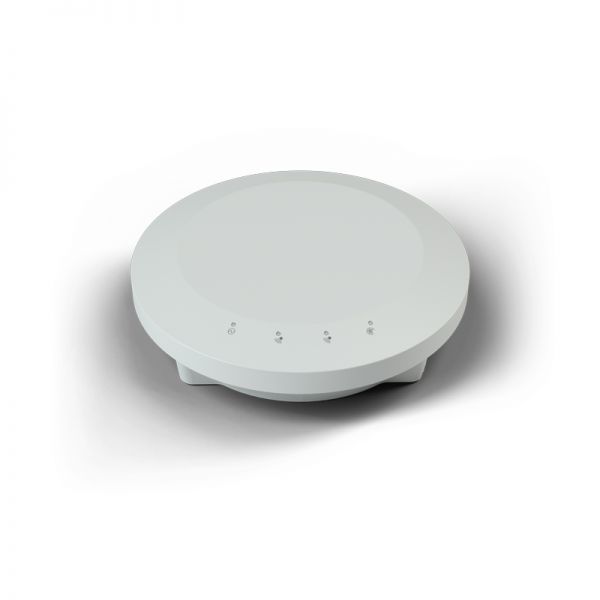

AP-7632-680B40-WR P/N: 37114 Overview
The AP-7632-680B40-WR is a high-performance Wi-Fi access point from Extreme Networks, designed for outdoor deployment. It supports 802.11ac Wave 2 technology and offers a total data rate of up to 1.3 Gbps. This access point features a ruggedized and weatherproof design, making it ideal for harsh environments. It also supports multiple security and management features, including centralized management through ExtremeCloud IQ.
Quick Spec
Table 1 shows the quick spec.
| Standards | IEEE 802.11a/b/g/n/ac Wave 2 |
| Radio | Dual-band, 2×2:2 MIMO |
| Data Rates | Up to 1.3 Gbps |
| Frequency Band | 2.4 GHz, 5 GHz |
| Antennas | Internal omnidirectional |
| Transmit Power | Up to 25 dBm |
| Power Over Ethernet | 802.3at (PoE+) |
AP-7632-680B40-WR P/N: 37114 Specification
| Ports | 2x Gigabit Ethernet (10/100/1000 Mbps) |
| Mounting | Wall or pole mount |
| Temperature Range | -40°C to 65°C (-40°F to 149°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Dimensions | 305 x 170 x 95 mm (12 x 6.7 x 3.7 in) |
| Security | WPA2-PSK, WPA2-Enterprise, 802.1X, VLANs |
| Management | Web-based GUI, CLI, SNMP, ExtremeCloud IQ |
| Certifications | FCC, IC, CE, UL, cUL, CB, RoHS, WEEE |
