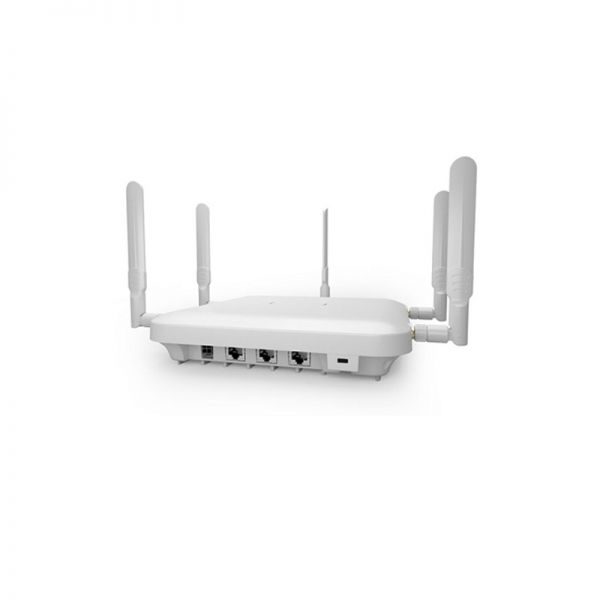

AP-8533-68SB30-1-WR Overview
AP-8533-68SB30-1-WR is a high-performance Wi-Fi access point from Extreme Networks, designed for use in high-density environments. It delivers up to 4.8 Gbps of total aggregate data rate and supports advanced radio technologies such as beamforming and MU-MIMO for reliable wireless connectivity. It also features multiple security and management features, including 802.1X authentication and centralized management through ExtremeCloud IQ.
Quick Spec
Table 1 shows the quick spec.
| Model | AP-8533-68SB30-1-WR |
| Wi-Fi standards supported | 802.11a/b/g/n/ac Wave 2 |
| Maximum data rate | 4.8 Gbps |
| Radio frequencies supported | 2.4 GHz, 5 GHz |
| Antenna gain | 3 dBi (2.4 GHz), 5 dBi (5 GHz) |
| Radio chains and streams | 4×4:4 (2.4 GHz), 4×4:4 (5 GHz) |
| MU-MIMO support | Yes |
| Beamforming support | Yes |
AP-8533-68SB30-1-WR Specification
| Ethernet ports | 2 x 1 Gbps Ethernet (RJ-45) ports |
| Power options | 802.3at PoE+ or external power supply |
| Maximum power consumption | 30 watts |
| Operating temperature range | 0°C to 50°C (32°F to 122°F) |
| Storage temperature range | -40°C to 70°C (-40°F to 158°F) |
| Operating humidity | 5% to 95% non-condensing |
| Storage humidity | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 2.4″ x 8.4″ x 8.4″ (61mm x 213mm x 213mm) |
| LED indicators | Power, Ethernet, and Wi-Fi status |
| Security features | WPA2-Enterprise, 802.1X authentication, RADIUS support |
| Management features | ExtremeCloud IQ, SNMP, HTTP/HTTPS, CLI, SSH |
| QoS features | 802.11e/WMM, 802.1p, DiffServ |
| Standards compliance | RoHS, WEEE, CE, FCC Part 15 Class B, ICES-003 Class B |
