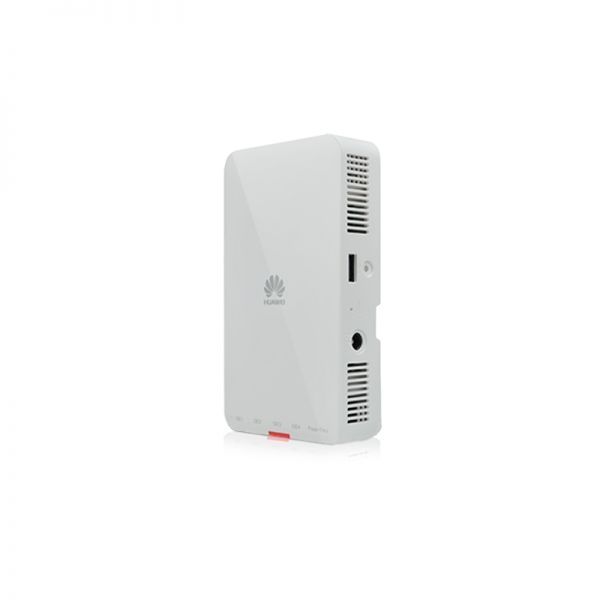

AP2051DN – Huawei Indoor Access Point
Huawei AP2051DN 802.11ac Wave 2 AP, built-in smart antennas, 2 x 2 MIMO and two spatial streams
AED2,499.00
AP2051DN Overview
Huawei AP2051DN is the gigabit wall plate access points (APs) in compliance with 802.11ac Wave 2. With mounting brackets, the APs can be easily adapted to junction boxes (86/118/120 mm) and wallmounting scenarios. The AP2051DN andĀ boast built-in smart antennas, a hidden indicator, and a brand-new “morning dew” style.
Quick Spec
Table 1 shows the Quick Specs.
| Product Code | AP2051DN |
| Dimensions (H x W x D) | 32.5 mm x 150 mm x 86 mm |
| Interface type
Ā |
Uplink: 1 x GE
Downlink: 4 x GE 2 x Pass-through RJ45 port 1 x USB port |
| LED indicator | Indicates the power-on, startup, running, alarm, and fault status of the system. |
| Power input | Power adapter: 45.6 V to 57 V
PoE power supply: in compliance with IEEE 802.3af/at |
| Maximum power consumption
Ā |
11.5 W (excluding the output power of the USB port)
NOTE The actual maximum power consumption depends on local laws and regulations. |
| Maximum number of SSIDs for each radio | ā¤Ā 16 |
| Maximum number of users
Ā |
ā¤Ā 256
NOTE The actual number of users varies according to the environment. |
Product Details
Huawei AP2051DNĀ provides these features:
ā¢Ā 802.11ac Wave 2 compliance, MU-MIMO (2SU-2MU), delivering services simultaneously on 2.4G and 5G radios, at a rate of up to 400 Mbit/s at 2.4 GHz, 867 Mbit/s Mbit/s at 5 GHz, and 1.267 Gbit/s for the device.
ā¢Ā One GE uplink port, four GE downlink ports, and two RJ45 pass-through phone ports (compatible with RJ11)
ā¢Ā Various installation modes for easy deployment, including ceiling-mounting, wall-mounting, plate-mounting and desk-mounting
ā¢Ā USB port used for external power supply and storage
ā¢Ā Built-in smart antennas, improving the coverage area
ā¢Ā Supports the Fat, Fit, and cloud modes and enables Huawei cloud management platform to manage and operate APs and services on the APs, reducing network O&M costs
AP2051DN Specification
AP2051DNĀ Specification |
|
| Dimensions (H x W x D) | 32.5 mm x 150 mm x 86 mm |
| Weight | 0.25 kg |
| Interface type
Ā |
Uplink: 1 x GE
Downlink: 4 x GE 2 x Pass-through RJ45 port 1 x USB port |
| LED indicator | Indicates the power-on, startup, running, alarm, and fault status of the system. |
| Power input | Power adapter: 45.6 V to 57 V
PoE power supply: in compliance with IEEE 802.3af/at |
| Maximum power consumption
Ā |
11.5 W (excluding the output power of the USB port)
NOTE The actual maximum power consumption depends on local laws and regulations. |
| Operating temperature | 0Ā°C to 40Ā°C |
| Storage temperature | ā40Ā°C to +70Ā°C |
| Operating humidity | 5% to 95% (non-condensing) |
| Altitude | ā60 m to +5000 m |
| Atmospheric pressure | 53 kPa to 106 kPa |
| Antenna type | Built-in dual-band smart antennas |
| Gain
Ā |
2.4G: 3 dB
5G: 4 dB NOTE Gain involves the physical gain and SINR enhancement of smart antennas. |
| Maximum number of SSIDs for each radio | ā¤Ā 16 |
| Maximum number of users
Ā |
ā¤Ā 256
NOTE The actual number of users varies according to the environment. |
| Maximum transmitĀ power
Ā |
2.4G: 23 dBm (combined power)
5G: 23 dBm (combined power) NOTE The actual transmit power depends on local laws and regulations. |
| Power increment | 1 dBm |
| Receiver sensitivity
Ā |
2.4 GHz 802.11b: -99 dBm @ 1 Mbit/s -91 dBm @ 11 Mbit/s
2.4 GHz 802.11g: -93 dBm @ 6 Mbit/s -78 dBm @ 54 Mbit/s 2.4 GHz 802.11n (HT20): -93 dBm @ MCS0 -72 dBm @ MCS15 5 GHz 802.11a: -93 dBm @ 6 Mbit/s -77 dBm @ 54 Mbit/s 5 GHz 802.11n (HT20): -92 dBm @ MCS0 -72 dBm @ MCS15 5 GHz 802.11n (HT40): -89 dBm @ MCS0 -70 dBm @ MCS15 5 GHz 802.11ac (VHT20): -92 dBm @ MCS0NSS1 -71 dBm @ MCS8NSS2 5 GHz 802.11ac (VHT40): -90 dBm @ MCS0NSS1 -63 dBm @ MCS9NSS2 5 GHz 802.11ac (VHT80): -86 dBm @ MCS0NSS1 -60 dBm @ MCS9NSS2 |
| Safety standards | UL 60950-1
IEC 60950-1 EN 60950-1 GB 4943 IEC 62368-1 EN 62368-1 |
| Radio standards | ETSI EN 300 328
ETSI EN 301 893 RSS-210 AS/NZS 4268 |
| EMC standards
Ā |
EN 301 489-1
EN 301 489-17 ETSI EN 60601-1-2 ICES-003 YD/T 1312.2-2004 GB 9254 GB 17625.1 EN 55022 EN 55024 IEC6ITU k.21 CISPR 22 CISPR 24 IEC61000-4-6 IEC61000-4-2 |
| IEEE standards
Ā |
IEEE 802.11a/b/g
IEEE 802.11n IEEE 802.11ac IEEE 802.11h IEEE 802.11d IEEE 802.11e IEEE 802.11k IEEE 802.11u IEEE 802.11v IEEE 802.11w IEEE 802.11r |
| Security standards
Ā |
802.11i, Wi-Fi Protected Access 2(WPA2), WPA
802.1X Advanced Encryption Standards(AES), Temporal Key Integrity Protocol(TKIP) EAP Type(s) |
| EMF | CENELEC EN 62311
CENELEC EN 50385 RSS-102 |
| RoHS | Directive 2002/95/EC & 2011/65/EU |
| REACH | Regulation 1907/2006/EC |
| WEEE | Directive 2002/96/EC & 2012/19/EU |
