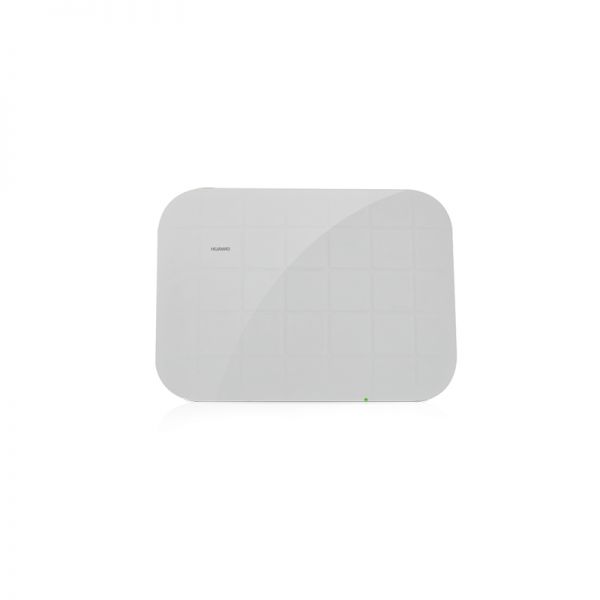

Huawei AP4050DN-E is an IoT-compatible wireless Access Point (AP) that supports 802.11ac Wave 2, 2 x 2 MIMO, and two spatial streams. The AP4050DN-E provides a rate of up to 1.267 Gbit/s and is applicable to shopping malls, supermarkets, healthcare, warehousing, manufacturing, and logistics environments.
Table 1 shows the Quick Specs.
| SKU | AP4050DN-E |
| Dimensions (H x W x D) | 220 mm x 220 mm x 53 mm |
| Interface type | 2 x 10/100/1000M self-adaptive Ethernet interface (RJ45)
1 x Management console port (RJ45) 1 x USB interface |
| LED indicator | Indicates the power-on, startup, running, alarm, and fault status of the system |
| Power Input | 12 V DC Ā± 10%
PoE power supply: in compliance with IEEE 802.3at |
| Operating Temperature | -10Ā°C to +50Ā°C |
AP4050DN-E provides these benefits:
ā GE Access
802.11ac Wave 2 compliance, MU-MIMO (2SU-2MU), delivering services simultaneously on 2.4G and 5G radio frequencies, with a rate of 1.267 Gbit/s for the device.
ā” IoT Wi-Fi Convergence
Converging Wi-Fi and IoT networks and reducing TCO by 50%.
ā¢ Easy Expansion
Three IoT slots that support application expansion for Bluetooth, RFID, and ZigBee.
Table 2 shows the comparison.
| Product Name | AP4050DN-E | AP4050DN-HD | AP4050DN |
| Dimension | 53 mm x 220 mm x 220 mm | 35 mm x 170 mm x 170 mm | 35 mm x 170 mm x 170 mm |
| Power Input | DC: 12V Ā±10%
PoE power supply: In compliance with IEEE 802.3at |
DC: 12V Ā±10%
PoE power: In compliance with IEEE 802.3af/at |
DC: 12V Ā±10%
PoE power supply: In compliance with IEEE 802.3af/at |
| Antenna Type | Built-in dual-band directional antenna (beamwidth:30 degrees) | Built-in dual-band directional antenna (beamwidth:30 degrees) | Built-in omnidirectional dual-band antennas |
| Operating Temperature | ā10Ā°C to +50Ā°C | ā10Ā°C to +50Ā°C | -10Ā°C to +50Ā°C |
| Maximum Number of Concurrent Users | ā¤ 512 | ā¤ 512 | ā¤ 512 |
AP4050DN-E Specification |
|
| Dimensions (H x W x D) | 220 mm x 220 mm x 53 mm |
| Interface Type | 2 x 10/100/1000M self-adaptive Ethernet interface (RJ45)
1 x Management console port (RJ45) 1 x USB interface |
| LED Indicator | Indicates the power-on, startup, running, alarm, and fault status of the system |
| Power Input | 12 V DC Ā± 10%
PoE power supply: in compliance with IEEE 802.3at |
| Operating Temperature | -10Ā°C to +50Ā°C |
| Storage Temperature | ā40Ā°C to +70Ā°C |
| Operating Humidity | 5% to 95% (non-condensing) |
| Altitude | ā60 m to +5000 m |
| Dustproof and
Waterproof grade |
IP41 |
| Atmospheric Pressure | 53 kPa to 106 kPa |
| Antenna Type | Built-in dual-band directional antenna (beamwidth: 30 degrees) |
| Maximum Number of Concurrent Users | ā¤ 512 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2 |
| Maximum Rate | 1.267 Gbit/s |
| Maximum Transmit Power | 2.4G: 23 dBm (combined power)
5G: 23 dBm (combined power) |
| Power Increment | 1 dBm |
| Receiver Sensitivity | 2.4 GHz 802.11bļ¼ā99 dBm @ 1 Mbit/sļ¼ā91dBm@ 11 Mbit/s
2.4 GHz 802.11gļ¼-92 dBm @ 6 Mbit/sļ¼ -77 dBm @ 54 Mbit/s 2.4 GHz 802.11n (HT20)ļ¼-92 dBm @ MCS0ļ¼-72 dBm @ MCS15 2.4 GHz 802.11n(HT40)ļ¼-89 dBm @ MCS0ļ¼ -70 dBm @ MCS15 5 GHz 802.11aļ¼-92 dBm @ 6 Mbit/sļ¼ -76 dBm @ 54 Mbit/s 5 GHz 802.11n (HT20)ļ¼-88 dBm @ MCS0ļ¼ -71 dBm @ MCS7 5 GHz 802.11n (HT40)ļ¼-83 dBm @ MCS0ļ¼ -69 dBm @ MCS7 5 GHz 802.11ac (VTH20)ļ¼-91 dBm @ MCS0NSS1ļ¼ -67 dBm @ MCS8NSS2 5 GHz 802.11ac (VTH40)ļ¼-88 dBm @ MCS0NSS1ļ¼ -63 dBm @ MCS9NSS2 5 GHz 802.11ac (VTH80)ļ¼-85 dBm @ MCS0NSS1ļ¼ -60 dBm @ MCS9NSS2 |
