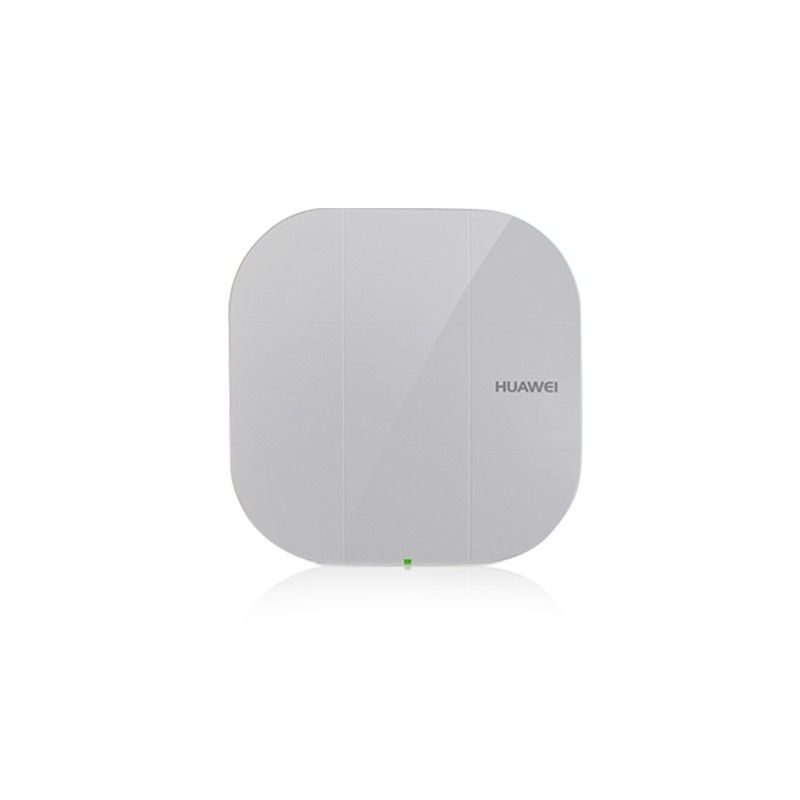

AP4050DN-S – Huawei Indoor Access Points

Add to Wishlist

1,099.00 د.إ

Add to Wishlist

AP4050DN-S Overview

Huawei AP4050DN-S is a next-generation Access Point (AP) that supports 802.11ac Wave 2, 2 x 2 MIMO, and two spatial streams. The AP complies with 802.11n and 802.11ac protocols and can provide gigabit access for wireless users, greatly enhancing user experience.

Quick Specs

Table 1 shows the Quick Specs.

SKU AP4050DN-S
Dimensions (H x W x D) 35 mm x 170 mm x 170 mm
Power Input DC: 12V Ā±10%

PoE power supply: In compliance with IEEE 802.3af/at
Operating Temperature -10Ā°C to +50Ā°C
Antenna Type Built-in omnidirectional dual-band antennas
Maximum Number of Concurrent Users ā‰¤ 512
MIMO: Spatial Streams 2 x 2:2
Radio Protocols 802.11a/b/g/n/ac/ac Wave 2
Maximum Rate 1.267 Gbit/s

Product Details

AP4050DN-SĀ provides these benefits:

ā‘  GE Access

802.11ac Wave 2 compliance, MU-MIMO (2SU-2MU), delivering services simultaneously on 2.4G and 5G radio frequencies, with a rate of 1.267 Gbit/s for the device.

ā‘” IoT Wi-Fi Convergence

Converging Wi-Fi and IoT networks and reducing TCO by 50%.

ā‘¢ Easy Expansion

Three IoT slots that support application expansion for Bluetooth, RFID, and ZigBee.

Category:

AP4050DN-S Specification

AP4050DN-S Specification
Dimensions (H x W x D) 35 x 170 x 170 mm
Interface Type 1 x 10/100/1000M self-adaptive Ethernet interface (RJ45)

Console interfaceļ¼ˆRJ45 x 1ļ¼‰
LED Indicator Indicates the power-on, startup, running, alarm, and fault status of the system.
Power Input DC: 12V Ā±10%

PoE power supply: In compliance with IEEE 802.3af/at
Operating Temperature -10Ā°C to +50Ā°C
Storage Temperature ā€“40Ā°C to +70Ā°C
Operating Humidity 5% to 95% (non-condensing)
Altitude ā€“60 m to +5000 m
Dustproof and

Waterproof Grade

 IP41
Atmospheric Pressure 53 kPa to 106 kPa
Antenna Type Built-in omnidirectional dual-band antennas
Maximum Number of Concurrent Users ā‰¤ 512
MIMO: Spatial Streams 2 x 2:2
Radio Protocols 802.11a/b/g/n/ac/ac Wave 2
Maximum Rate 1.267 Gbit/s
Maximum Transmit power 2.4G: 23 dBm (combined power) 5G: 23 dBm (combined power)
Power Increment 1 dBm
Receiver Sensitivity 2.4 GHz 802.11bļ¼šā€“97dBm @ 1 Mbit/sļ¼›ā€“91dBm@ 11 Mbit/s

2.4 GHz 802.11gļ¼š-93dBm @ 6 Mbit/sļ¼› -78dBm @ 54 Mbit/s

2.4 GHz 802.11n (HT20)ļ¼š-93 dBm @ MCS0ļ¼›-72dBm @ MCS15

2.4 GHz 802.11n(HT40)ļ¼š-90 dBm @ MCS0ļ¼› -71 dBm @ MCS15

5 GHz 802.11a ļ¼š-93 dBm @ 6 Mbit/sļ¼› -77dBm @ 54 Mbit/s

5 GHz 802.11n (HT20)ļ¼š-92 dBm @ MCS0ļ¼› -72 dBm @ MCS15

5 GHz 802.11n (HT40)ļ¼š-89 dBm @ MCS0ļ¼› -70dBm @ MCS15

5 GHz 802.11ac (VHT20)ļ¼š-92 dBm @ MCS0NSS1ļ¼› -71 dBm @ MCS8NSS2

5 GHz 802.11ac (VHT40)ļ¼š-90 dBm @ MCS0NSS1ļ¼› -63 dBm @ MCS9NSS2

5 GHz 802.11ac (VHT80)ļ¼š-86 dBm @ MCS0NSS1ļ¼› -60 dBm @ MCS9NSS2
