AP7060DN

Add to Wishlist

AED2,599.00

Add to Wishlist

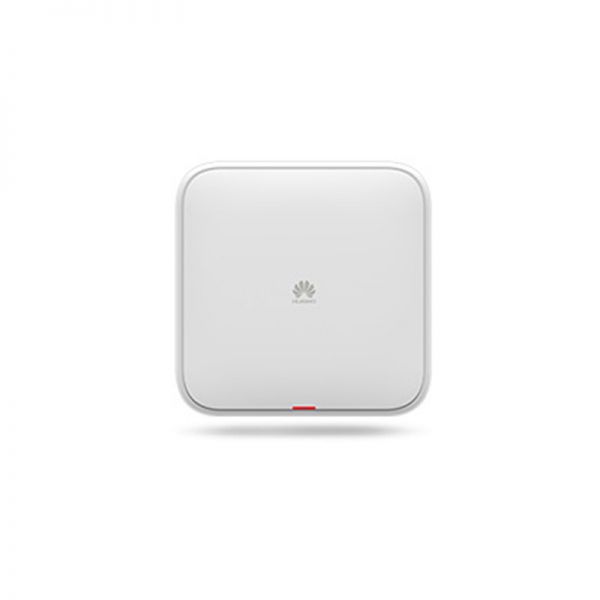

AP7060DN Overview

The AP7060DN is a cutting-edge 802.11ax wireless access point (AP) with built-in omnidirectional antennas. The device rate can reach up to 5.95 Gbps. On the 2.4 GHz band, the AP7060DN supports 4×4 MIMO and four spatial streams, achieving a rate of 1.15 Gbps.

Quick Spec

Table 1 shows the Quick Specs.

Product Code AP7060DN
Dimensions (H x W x D) 57 mm x 220 mm x 220 mm
Interface type 1 x 10/100/1000M self-adaptive Ethernet interface (RJ45)

1 x 100/1000M/2.5G/5G/10G self-adaptive Ethernet interface (RJ45)

1 x Management console port (RJ45)

1 x USB interface
External IoT module 1 x External IoT module (supporting ZigBee and RFID)
Built-in Bluetooth BLE5.0
LED indicator Indicates the power-on, startup, running, alarm, and fault states of theĀ system.
Power input
 ā€¢Ā DC: 42.5 V to 57 V

ā€¢Ā PoE power supply: In compliance with 802.3 at/bt.
Maximum number of SSIDs for each radio ā‰¤Ā 16
Maximum number of users ā‰¤Ā 512

NOTE

The actual number of users varies according to the environment.

Product Details

Huawei AP7060DNĀ provides these features:

ā€¢Ā Provides services simultaneously on both the 2.4 GHz and 5 GHz bands, at a rate of up to 1.15 Gbps at 2.4 GHz, 4.8 Gbps at 5 GHz, and 5.95 Gbps for the device.

ā€¢Ā Provides a 10GE uplink interface that supports 100M/1000M/2.5G/5G auto-sensing.

ā€¢Ā Supports Bluetooth serial interface-based O&M through built-in Bluetooth and CloudCampus APP, and precise locating of Bluetooth terminals by collaborating with eSight.

ā€¢Ā Provides a USB interface for external power supply and storage.

ā€¢Ā Provides an external IoT module, allowing for flexible IoT application extension.

ā€¢Ā Supports the Fat, Fit, and cloud modes and enables Huawei cloud-based management platform to manage and operate APs and services on the APs, reducing network O&M costs.

Compare to Similar Items

TableĀ 2Ā shows the comparison.

Product Code AP7060DN AP7152DN
Dimensions (H x W x D) 57 mm x 220 mm x 220 mm 52 mm x 220 mm x 220 mm
Built-in Bluetooth BLE5.0 BLE4.1
Antenna type Built-in dual-band omnidirectional antennas external dual-band omnidirectional antennas
Antenna gain Ā  2.4GHz: 4.6dBi

5GHz: 5.6dBi

 2.4G / 5G (switchable): 3.5 dBi/ 4 dBi

5G (non-switchable): 4 dBi
Maximum number of SSIDs for each radio ā‰¤Ā 16 ā‰¤Ā 16
Maximum number of users ā‰¤Ā 512 ā‰¤Ā 512
Maximum transmit power 2.4G: 24 dBm (combined power)

5G: 27 dBm (combined power)

 2.4G /5G (switchable): 26 dBm/21 dBm (combined power)

5G (non-switchable): 24 dBm (combined power)
Power increment 1 dBm 1 dBm
SKU: AP7060DN Category: Tag:

AP7060DN Specification

AP7060DNĀ Specification
Dimensions (H x W x D) 57 mm x 220 mm x 220 mm
Weight 1.8 kg
Interface type 1 x 10/100/1000M self-adaptive Ethernet interface (RJ45)

1 x 100/1000M/2.5G/5G/10G self-adaptive Ethernet interface (RJ45)

1 x Management console port (RJ45)

1 x USB interface
External IoT module 1 x External IoT module (supporting ZigBee and RFID)
Built-in Bluetooth BLE5.0
LED indicator Indicates the power-on, startup, running, alarm, and fault states of the

system.
Power input
 ā€¢Ā DC: 42.5 V to 57 V

ā€¢Ā PoE power supply: In compliance with 802.3 at/bt.
PoE power supply mode 2.4GHz 5GHz Maximum power consumption

(excluding USB and IoT)
802.3bt(PoE++) 4×4 8×8 <30W
802.3at(PoE+) 3×3 6×6 <25.5W
NOTE

The actual maximum power consumption depends on local laws and regulations.
Operating temperature ā€“10Ā°C to +50Ā°C
Storage temperature ā€“40Ā°C to +70Ā°C
Operating humidity 5% to 95% (non-condensing)
Dustproof and waterproof grade IP41
Altitude ā€“60 m to +5000 m
Atmospheric pressure 53 kPa to 106 kPa
Antenna type Built-in dual-band omnidirectional antennas
Antenna gain Ā  2.4GHz: 4.6dBi

5GHz: 5.6dBi

NOTE

1. The gains above are the single-antenna peak gains.

2. The equivalent antenna gain after all 2.4 GHz or 5 GHz antennas areĀ combined is 4 dBi in 2.4 GHz or 2 dBi in 5 GHz.
Maximum number of SSIDs for each radio ā‰¤Ā 16
Maximum number of users ā‰¤Ā 512

NOTE

The actual number of users varies according to the environment.
Maximum transmit power 2.4G: 24 dBm (combined power)

5G: 27 dBm (combined power)

NOTE

The actual transmit power depends on local laws and regulations.
Power increment 1 dBm
Maximum number of non–overlapping channels

Ā

 2.4 GHzļ¼ˆ2.412GHzļ½ž2.472GHzļ¼‰ l

ā€¢Ā 802.11b/g

āˆ’Ā 20MHzļ¼š3Ā l

ā€¢Ā 802.11n

āˆ’Ā 20MHzļ¼š3Ā āˆ’Ā 40MHzļ¼š1Ā l

ā€¢Ā 802.11ax

āˆ’Ā 20MHzļ¼š3Ā āˆ’Ā 40MHzļ¼š1

5 GHzļ¼ˆ5.18GHzļ½ž5.825GHzļ¼‰ l

ā€¢Ā 802.11a

āˆ’Ā 20MHzļ¼š13

ā€¢Ā 802.11n

āˆ’Ā 20MHzļ¼š13

āˆ’Ā 40MHzļ¼š6Ā l

ā€¢Ā 802.11ac

āˆ’Ā 20MHzļ¼š13

āˆ’Ā 40MHzļ¼š6Ā āˆ’Ā 80MHzļ¼š3Ā āˆ’Ā 160MHzļ¼š1Ā l

ā€¢Ā 802.11ax

āˆ’Ā 20MHzļ¼š13

āˆ’Ā 40MHzļ¼š6Ā āˆ’Ā 80MHzļ¼š3Ā āˆ’Ā 160MHzļ¼š1

NOTE

The table uses the number of non-overlapping channels supported by

China as an example. The number of non-overlapping channels varies

in different countries. For details, see the Country Codes & Channels

Compliance
Safety standards UL 60950-1

CAN/CSA 22.2 No.60950-1

IEC 60950-1

EN 60950-1

GB 4943

IEC 62368-1

EN 62368-1
Radio standards ETSI EN 300 328

ETSI EN 301 893

RSS-210

AS/NZS 4268
EMC standards EN 301 489-1

EN 301 489-17

ETSI EN 60601-1-2

FCC Part 15

ICES-003

YD/T 1312.2-2004

ITU k.20

GB 9254

GB 17625.1

AS/NZS CISPR22

EN 55022

EN 55024

CISPR 22

CISPR 24

IEC61000-4-6

IEC61000-4-2
IEEE standards IEEE 802.11a/b/g

IEEE 802.11n

IEEE 802.11ac

IEEE 802.11ax

IEEE 802.11h

IEEE 802.11d

IEEE 802.11e

IEEE 802.11k

IEEE 802.11u

IEEE 802.11v

IEEE 802.11w

IEEE 802.11r
Security standards 802.11i, Wi-Fi Protected Access 2(WPA2), WPA

802.1X

Advanced Encryption Standards(AES), Temporal Key Integrity Protocol(TKIP)

EAP Type(s)
EMF CENELEC EN 62311

CENELEC EN 50385

OET65

RSS-102

FCC Part1&2

FCC KDB Series
RoHS Ā  DirectiveĀ 2002/95/EC & 2011/65/EU
Reach Ā  RegulationĀ 1907/2006/EC
WEEE Directive 2002/96/EC & 2012/19/EU
