AP8130DN Huawei Dual-band Outdoor Wireless Access point
|
AP8130DN Mainframe(11ac,General AP Outdoor,3×3 Double Frequency,External Antenna)
|
AED2,499.00
AP8130DN Overview
Huawei AP8130DN performance-enhanced 802.11ac Access Point sets a new standard in outdoor networking with innovative RF optimization techniques that boost data rates to 1.75 Gbit/s, nearly tripling the throughput of typical 802.11n APs.
Quick Specs
Table 1 shows the Quick Specs.
| Product Number | AP8130DN |
| Power Input | PoE: In compliance with IEEE 802.3at |
| Maximum Power Consumption | 22.4W |
| Operating Temperature | ā40Ā°C to 65Ā°C |
| Antenna Type | Outdoor external antennas |
| Maximum Number of Users | ā¤ 256 |
| Maximum Transmit Power | 2.4G: 28 dBm (combined power) 5G: 26 dBm (combined power) |
| MIMO: Spatial Streams | 3 x 3:3 |
| Radio Protocols | 802.11a/b/g/n/ac |
| Maximum Speed | 1.75 Gbit/s |
| Power Input | PoE: In compliance with IEEE 802.3at |
| Dimensions (H x W x D) | 290 mm x 260 mm x 100 mm |
| Weight | 4 kg |
Product Details
Figure 1 shows the front interfaces of AP8130DN.
Note:
| ā | 5 GHz antenna interface |
| ā” | GE0/PoE interface: a 10/100/1000M interface, which connects to the wired Ethernet and supports the PoE power supply. |
| ā¢ | GE1 interface: a 10/100/1000M interface, which connects to the wired Ethernet. |
| ā£ | SFP: an optical interface. |
| ā¤ | 2.4 GHz or 5 GHz antenna interface. |

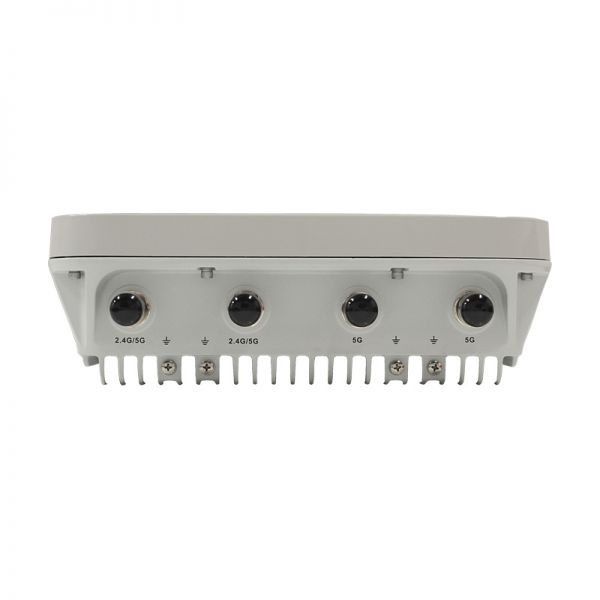

Figure 2 shows the antennas interfaces of AP8130DN.
Note:
| ā | 5 GHz antenna interface |
| ā” | 2.4 GHz or 5 GHz antenna interface |
AP8130DN Specification
AP8130DN Specifications |
|||||
|
Technical |
|||||
| Dimensions (H Ć W Ć D) | 39 in. x 10.2 in. x 11.4 in. (100 mm x 260 mm x 290 mm) | ||||
| Weight | 8.82 lb. (4 kg) | ||||
| System memory |
256 MB DDR3 64 MB flash memory |
||||
|
Power |
|||||
| Power input | PoE: in compliance with IEEE 802.3at | ||||
| Maximum power consumption | 22.4W
Note: Maximum power consumption depends on local laws and regulations |
||||
|
Environment |
|||||
| Operating temperature | -40oF to 140oF (-40oC to 60oC) | ||||
| Storage temperature |
-40oF to 158oF (-40oC to 70oC) |
||||
| Humidity | 5% to 95% (Non-condensing) | ||||
| Waterproof grade | IP67 | ||||
| Altitude | 196.8 ft. to 16,404.1 ft. (-60m to 5,000m) | ||||
|
Radio frequency specifications |
|||||
| Antenna Type | Built-in | ||||
| Antenna Gain | Ā·2.4G: 2.5 dBi
Ā·5G: 4 dBi |
||||
| Maximum Number of Users | ā¤ 256
Note: The number of concurrent online users on each VAP or radio frequency cannot exceed 128 |
||||
| Maximum Transmit Power for each Radio Frequency | 2.4 GHz: 23 dBm
5 GHz: 21 dBm Note: The 2.4 GHz radio frequency does not support the 40M bandwidth in F.C.C. regions (including America). The actual transmit power depends on local laws and regulations. You can adjust the transmit power to the maximum transmit power of 15 dB in 1 dB steps |
||||
| Channel Rates | 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s
802.11b: 1, 2, 5.5, and 11 Mbit/s 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbit/s 802.11n: 6.5 Mbit/s to 450 Mbit/s 802.11ac: 6.5 Mbit/s to 1,300 Mbit/s |
||||
| Receiver Sensitivity | 2.4 GHz
802.11b (CCK) -100 dBm @ 1 Mbit/s -90 dBm @ 11 Mbit/s |
2.4 GHz
802.11g (Non-HT20) -95 dBm @ 6 Mbit/s -82 dBm @ 54 Mbit/s |
2.4 GHz
802.11n (HT20) -95 dBm @ MCS0 -74 dBm @ MCS23 |
2.4 GHz
802.11n (HT40) -92 dBm @ MCS0 -71 dBm @ MCS23 |
|
| 5 GHz
802.11a (non-HT20) -96 dBm @ 6 Mbit/s -80 dBm @ 54 Mbit/s /s |
5 GHz
802.11n (5T20) -95 dBm @ MCS0 -74 dBm @ MCS23 |
5 GHz
802.11n (HT40) -92 dBm @ MCS0 -71 dBm @ MCS23 |
|||
| 5 GHz
802.11ac (VHT20) -95 dBm @ MCS0NSS1 -67 dBm @ MCS9NSS1 |
5 GHz
802.11ac (VHT40) -92 dBm @ MCS0NSS1 -63 dBm @ MCS9NSS3 |
5 GHz
802.11ac (VHT80) -90 dBm @ MCS0NSS1 -59 dBm @ MCS9NSS3 |
|||
