Apantac HDMI 1.3a to SDI Converter with Dual 3G-SDI Out

Add to Wishlist
Key Features
  • 1 HDMI Input / 1 HDMI Loop Output
  • 2 3G-SDI Outputs w/ 4 Ch Embedded Audio
  • 1 RJ45 Input for HDMI-Converted Signals
  • Analog Stereo Output
  • Supports HDMI 1.3a and 1.2
  • Converts1080p Input to 1080i Output
  • Built-In Color Bar Generator
  • Scans for Active Signal between 2 Inputs
  • HDCP Compliant / Requires Handshaking

AED3,199.00

Add to Wishlist

Apantac’s HDMI 1.3a to SDI Converter with Dual 3G-SDI Out converts an HDMI input to two 3G/HD-SDI outputs with 4 channels of embedded audio. The converter is HDCP-compliant and is capable of and requires HDCP handshaking. In addition to the HDMI input, an RJ45 input is available for signals converted from HDMI by an optional HDMI to RJ45 converter (for the purpose of achieving even greater distance via CAT5e/6 cables, which have longer carry capacity than HDMI cables).

Key Features
  • HDMI and HDMI-converted RJ45 inputs
  • 2x 3G/HD-SDI outputs with 4 channels of embedded audio
  • Supports HDMI 1.2 and 1.3a
  • Capable of and requires HDCP handshaking
  • Capable of converting 1080p input to 1080i output
  • Built-in Color Bar generator
  • Analog Stereo output
  • RJ45 input is Tahoma multiviewer compatible

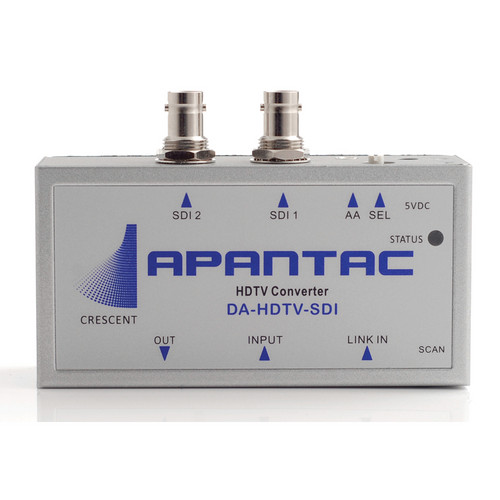

Controls & Indicators
  • Function Selection Rotary Switch: for interlacing and for internal color bars
  • Scan Button: scans between the HDMI and RJ45 inputs to look for an active signal
  • Status Indicator: turns green when power is on, amber when an HDMI signal is present
SKU: DA-HDTV-SDI Category: Tag:

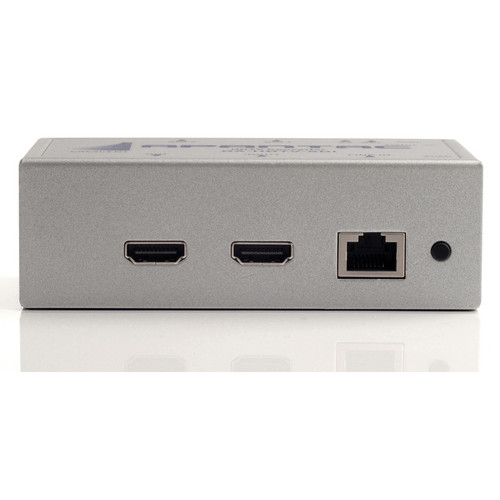

Inputs
1x HDMI
1x RJ45 (for HDMI signals converted to CAT5/6 via optional converter)
Outputs
2x 3G/HD-SDI
1x Stereo audio jack

Terminator should be applied to the second SDI output when it isn’t in use

Maximum Resolution / Distance
HD-SDI up to 460 ft (140 m), 3G up to 393 ft (120 m)
Power
5V 3.2A power input
Dimensions
2.4 x 4.4 x 1.4″ (6.2 x 11.2 x 3.5 cm)
Packaging Info
Package Weight
2 lb
Box Dimensions (LxWxH)
10.4 x 7.3 x 3.8″
