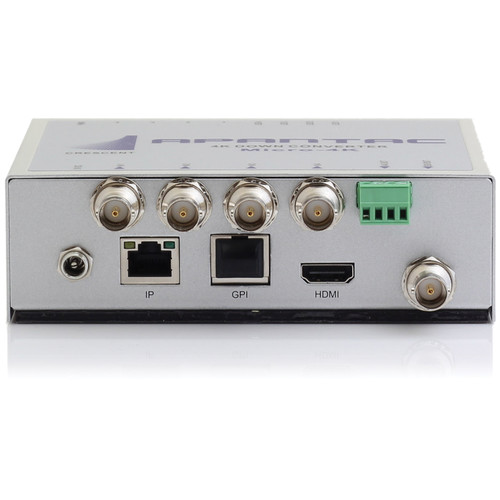

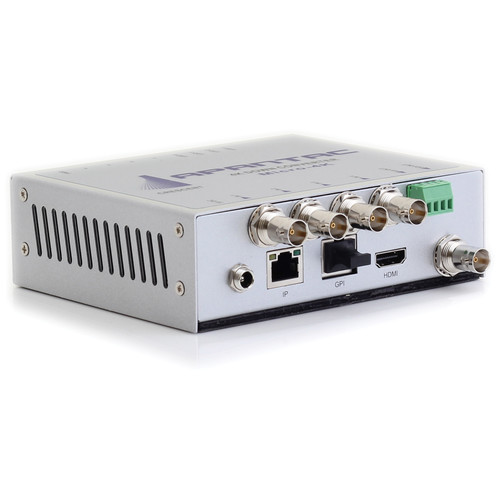

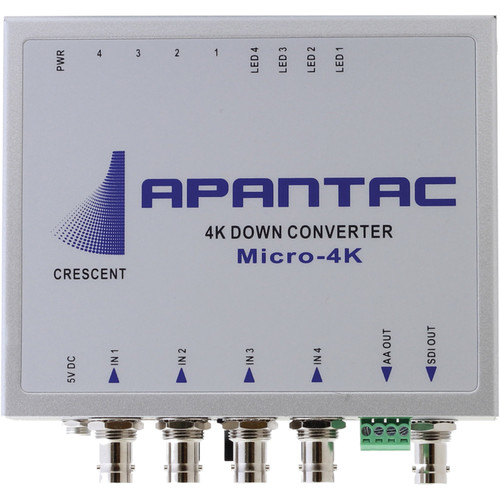

Apantac Micro-4K 4K to HD Down Converter

Add to Wishlist

AED4,899.00

Add to Wishlist

The Micro-4K 4K to HD Down Converter from Apantac features total of 4 BNC connectors each of which can auto-detect 3G-SDI, HD-SDI, or SD-SDI input. It is able to downconvert 4K video signals sent via quad-link HD-SDI or 3G-SDI. After processing, it is capable of producing HDMI and SDI outputs of up to 1080p resolution. For audio, it supports up to 8 channels of embedded audio and provides stereo analog audio output.

  • Supports 4K over four SDI inputs
  • HDMI and SDI output with embedded audio for monitoring
  • Supports HDMI and SDI output resolution up to 1080p
  • Supports up to 8 channels of embedded audio
  • IP control
  • Stereo analog audio output
  • Features safe area indicators
  • Supports Dynamic Tally via TSL (IP) or GPI
  • Front panel buttons to recall presets; each button is dedicated for each input
SKU: MICRO-4K Category: Tag:
Video Inputs
4 x 3G/HD/SD-SDI via BNC Connector
Video Outputs
1 x HDMI
1 x 3G/HD/SD-SDI via BNC Connector
Total Windows
1
Serial Digital
SMPTE 424M, 292M, 259M
Equalization
394′ (120 m) at 2.97 Gb/s, 459′ (140 m) at 1.48 Gb/s, 1312′ (400 m) at 270 Mb/s with Belden 1694A
Return Loss
>15 dB up to 1.485 Gb/s; >10 dB up to 3G
Embedded Audio
SMPTE-272M-A
HDMI Resolutions
800 x 480 to 1920 x 1200 (1080p) @ 50/60 Hz
SDI
Matching HDMI output resolution up to 3G
Audio Output
Stereo analog
On-Screen Display
Border, label, alarms, and audio meters
GPI
8 for tally, preset recall or ASCII
IP
100 Base-Tx, TSL, AXP
EMI / RFI
Complies with FCC Part 15, Class A, CE, EU, EMC, C-tick
Mount
Magnetic
Electrical
12 W, 90 to 250 VAC, 50/60 Hz
Power
5 VDC, 3 A
Dimensions
9 x 7 x 5″ (23 x 18 x 13 cm)
Weight
3.0 lb (1.4 kg)
Packaging Info
Package Weight
3.5 lb
Box Dimensions (LxWxH)
9.3 x 7 x 5.1″
