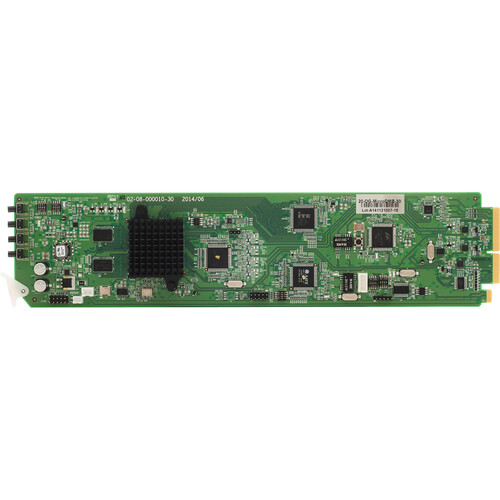

Apantac Up/Down/Cross Converter Card and Rear Module Set for openGear 3.0 Frame

Add to Wishlist

AED4,799.00

Add to Wishlist
Key Features
  • OpenGear 3.0 card-based form factor
  • Dashboard control enabled
  • Low power consumption
  • Single frame processing delay
  • Supports up to 16 channels of embedded audio
  • Stereo analog audio input
  • Ethernet for configuration
  • Simultaneous HDMI/DVI and SDI outputs
  • Stereo analog audio monitoring output
  • HDMI output has embedded audio (up to 8 channels)
  • SDI output has embedded audio (up to 16 channels)
SKU: OG-MICRO-UDX-SET-1 Category: Tag:
General
Type
Up/down/cross converter card
Studio & Production Equipment
Supported Video Standards
PAL, NTSC
Power
Max Power Consumption
12 W
Kit Content
Kit Content

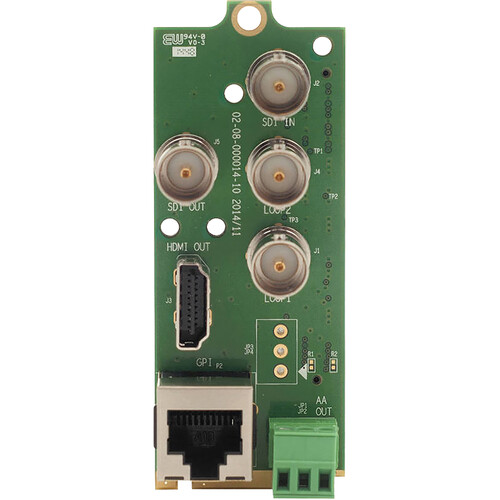

(1) x input/output module – Apantac OG-Micro-UDX-RM
(1) x video conversion module – Apantac OG-Micro-UDX-MB
Terminals
Terminals
(1) x 3G HD-SDI input – BNC
(3) x SDI output – BNC
(1) x HDMI output – 19 pin HDMI Type A
(1) x GPI output – RJ-50
(1) x audio line-in
(1) x audio line-out
Packaging Info
Package Weight
1.295 lb
Box Dimensions (LxWxH)
16.4 x 9.1 x 2.3″
