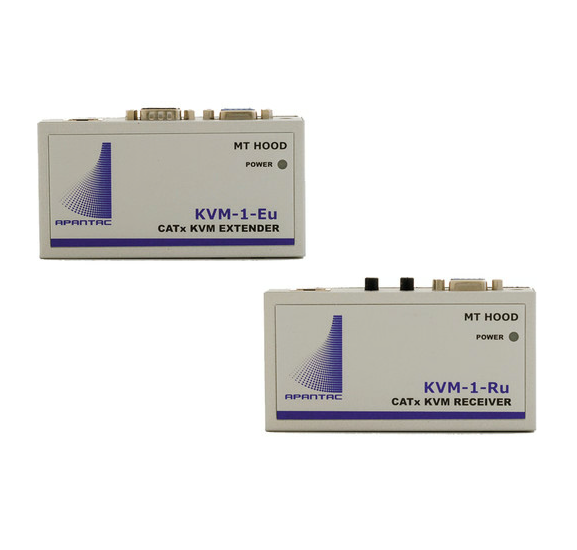

The VGA/USB over CATx KVM-1-EU Extender & KVM-1-RU Receiver Set from Apantac is designed to extend audio, USB, VGA, and DVM signals up to 1000′ away via a single CATx cable. This plug and play set also features remote/local monitoring and control. It supports MS-DOS, Windows, FreeBSD, Linux, Unix, and Novel operating systems.
Extends VGA, USB, KVM, and audio signals over a single CATx cable
VGA resolution of 2048 x 1536 up to 1000′ away
Plug and play – no software required
Remote / local monitoring and control
Supports MS-DOS, Windows, FreeBSD, Linux, Unix, and Novel operating systems
Apantac KVM-SET Specs
| Connectors | Extender: 1 x USB keyboard input 1 x USB Mouse input 1 x 3.5 mm phone jack, audio input 1 x 15-pin Sub-D female, PC input 1 x RJ-45, system link 1 x 15-pin Sub-D VGA female, local monitor output 1 x 3.5 mm phone jack, audio output Receiver: 1 x RJ-45, system link 1 x 5 VDC input 1 x 15-pin Sub-D VGA female, local monitor output 1 x USB type A female, mouse 1 x USB type A female, keyboard |
| Indicators | Each Unit: 1 x USB Status |
| Controls | Receiver: 1 x Gain, rotary knob 1 x Focus, rotary knob |
| Power Connector | 1 x 5 VDC barrel, power input |
| Control | Receiver: 1 x EQ control rotary knob |
| Adjustments | Receiver: equalizer |
| Maximum Resolution | 2048 x 1536 |
| Distance | Up to 1000′ (300 m) |
| Mount | Magnetic |
| Power | Extender: 5 VDC, 1000 mA (from USB or optional DC) Receiver: 5 VDC, 1000 mA |
| Dimensions | Each Unit: 2.4 x 4.4 x 1.1″ (6.2 x 11.3 x 2.9 cm) |
| Weight | Both Units: 4.0 lb (1.8 kg) |
Packaging Info
| Package Weight | 3 lb |
| Box Dimensions (LxWxH) | 12.3 x 7.9 x 2.9″ |
