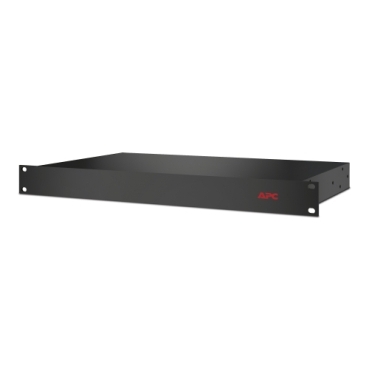

Product Specification Table – Ruggedized Power Filter
| Category | Specification |
|---|---|
| Overview | High availability, ruggedized power protection for shipboard and other transportation applications |
| Lead Time | Usually in Stock |
Main Specifications
| Feature | Specification |
|---|---|
| Product or Component Type | Filter |
| Main Input Voltage | 208 V, 220 V, 230 V, 240 V |
| Main Output Voltage | 200 V, 208 V, 220 V, 230 V, 240 V |
| Other Output Voltage | 208 V, 220 V, 230 V, 240 V |

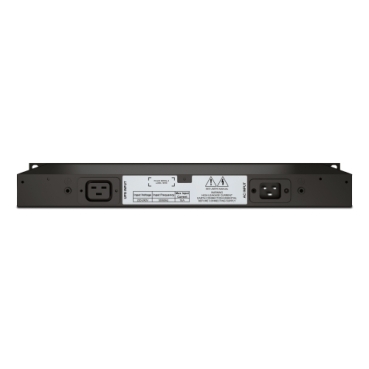

| Input Connection Type | IEC 60320 C20 |
| Number of Rack Units | 1U |
| Cable Length | 8 ft (2.4 m) |
| Number of Cables | 1 |
| Provided Equipment | Installation guide, Mounting hardware, User manual |
Environmental Specifications
| Feature | Specification |
|---|---|
| Operating Temperature | 32–131 °F (0–55 °C) |
| Operating Relative Humidity | 0–95% |
| Operating Altitude | 0–10,000 ft |
| Storage Temperature | -13–167 °F (-25–75 °C) |
| Storage Relative Humidity | 0–95% |
| Storage Altitude | 0–50,000 ft (0–15,240 m) |
Physical Characteristics
| Feature | Specification |
|---|---|
| Color | Black |
| Height | 1.73 in (4.4 cm) |
| Width | 17.01 in (43.2 cm) |
| Depth | 10.98 in (27.9 cm) |
| Weight | 11.22 lb (5.09 kg) |
| Mounting Location | Front |
| Mounting Preference | No preference |
| Mounting Mode | Not rack-mountable |
Input Specifications
| Feature | Specification |
|---|---|
| Input Frequency | 47–63 Hz |
| Line Rated Current | 16 A |
| Acceptable Input Voltage | 100–240 V |
| Max Line Current | 16 A |
| Input Current Limits | 16 A |
| Load Capacity | 3000 VA |
Output Specifications
| Feature | Specification |
|---|---|
| Max Total Current Draw (per phase) | 16 A |
| Power Socket Outlets | 1 × IEC 60320 C19 |
| Number of Power Socket Outlets | 1 |
| Protection Type | Without circuit breaker |
| Cord Length | 8 ft (2.4 m) |
Conformance
| Feature | Specification |
|---|---|
| Product Certifications | DNV |
