| Category | Specification |
|---|---|

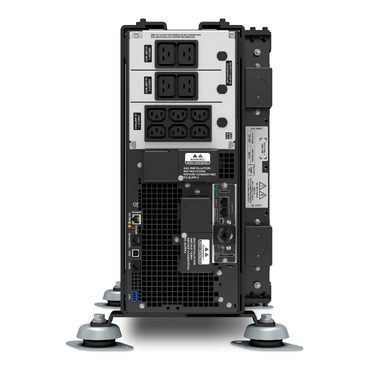

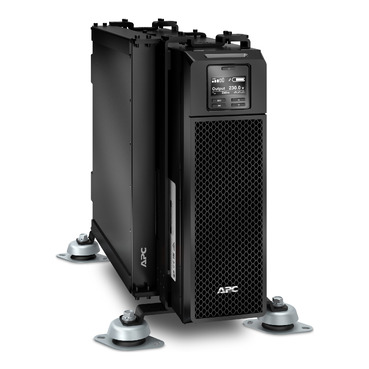

| Presentation | High availability, ruggedized power protection for shipboard and other transportation applications |
| Lead Time | Usually in Stock |
Main Specifications
| Feature | Specification |
|---|---|

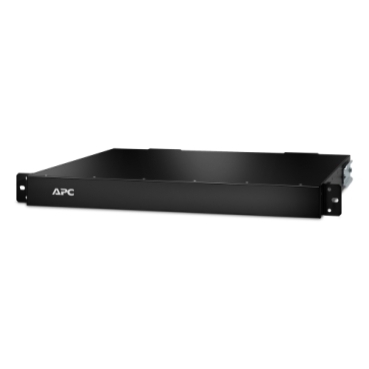

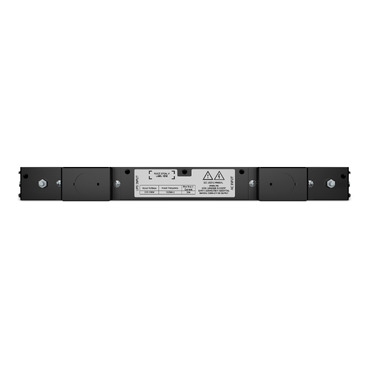

| Product or Component Type | Filter |
| Main Input Voltages | 200 V, 208 V, 220 V, 230 V, 240 V |
| Main Output Voltages | 200 V, 208 V, 220 V, 230 V, 240 V |
| Other Output Voltages | 208 V, 220 V, 230 V, 240 V |
| Output Connector Type | 1 × Hard Wire 3-wire (H N + E) |
| Connections – Terminals | 2 screw terminal |
| Rack Units | 1U |
| Provided Equipment | Installation guide, Mounting hardware, Rack mounting brackets, User manual |
Environmental Specifications
| Feature | Specification |
|---|---|
| Operating Temperature | 32…131 °F (0…55 °C) |
| Relative Humidity (Operating) | 0…95% |
| Operating Altitude | 0…10,000 ft |
| Storage Temperature | -13…167 °F (-25…75 °C) |
| Relative Humidity (Storage) | 0…95% |
| Storage Altitude | 0…50,000 ft (0…15,240 m) |
Physical Characteristics
| Feature | Specification |
|---|---|
| Color | Black |
| Height | 1.73 in (4.4 cm) |
| Width | 19.02 in (48.3 cm) |
| Depth | 12.99 in (33 cm) |
| Weight | 14.84 lb (6.73 kg) |
| Mounting Location | Front |
| Mounting Preference | No preference |
| Mounting Mode | Not rack-mountable |
| Mounting Position | Horizontal |
Input Specifications
| Feature | Specification |
|---|---|
| Input Frequency | 45…65 Hz |
| Line Rated Current | 50 A |
| Number of Input Connectors | 1 × Hard Wire 3-wire |
| Acceptable Input Voltage | 100…240 V |
| Max Line Current | 50 A |
| Input Current Limits | 50 A |
| Load Capacity | 6000 VA |
Output Specifications
| Feature | Specification |
|---|---|
| Max Total Current Draw per Phase | 50 A |
Conformance
| Product Certifications | DNV |
