Power distribution unit
APC AP7569 Rack PDU, Basic, Zero U, 14.4KW, 208V, (24) C13, (4) C19, (2) L6-30R;3 Cord
- Suitable for high-density power distribution in data centers and network environments
- The various outlets provides flexibility to connect a variety of IT equipment

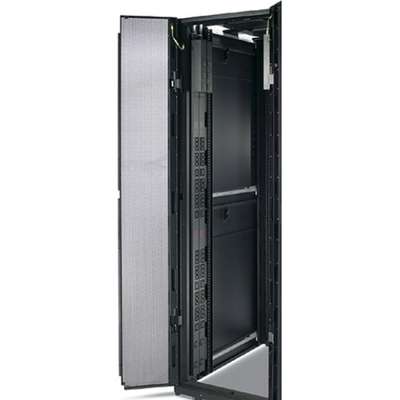

- The vertical Zero U design optimizes the use of space in the rack
- Easy to install and integrate into existing rack setups
AED12,699.00

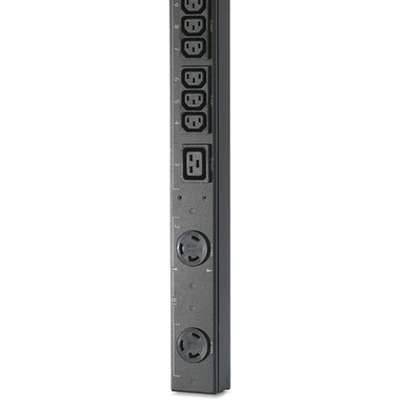

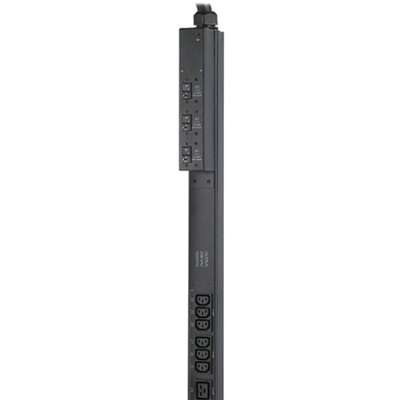

 It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 50A and operates at 208V. The PDU features 24 IEC 60320 C13, 4 IEC 60320 C19, and 2 NEMA L6-30R outlets, providing flexibility for connecting various IT equipment. It includes a 3-foot power cord with a CS8365 plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit. |
| Category | Attribute | Details |
|---|---|---|
| General Information | Product Name | AP7569 Rack PDU, Basic, Zero U, 14.4KW, 208V, (24) C13, (4) C19, (2) L6-30R;3 Cord |
| Manufacturer Part Number | AP7569 | |
| Product Line | Basic Rack | |
| Packaged Quantity | 1 Each | |
| Product Type | PDU | |
| Technical Information | PDU Type | Basic |
| Plug / Connector Type | Hubbell CS8365C | |
| Receptacle Type | IEC 60320 C13 IEC 60320 C19 NEMA L6-30R |
|
| Receptacle Detail | 24 x IEC 60320 C13 4 x IEC 60320 C19 2 x NEMA L6-30R |
|
| Protection Type | Overload Protection | |
| Power Description | Input Voltage | 208 V |
| Output Voltage | 208 V AC | |
| Power Rating (VA) | 14.40 kVA | |
| Physical Characteristics | Color Family | Black |
| Product Color | Black | |
| Mounting Orientation | Vertical | |
| Mount Type | Rack-mountable | |
| Placement | Side | |
| Rack Height | 0U | |
| Cord Length | 3 ft | |
| Height | 70″ | |
| Width | 2.2″ | |
| Depth | 3.7″ |
Based on 0 reviews
