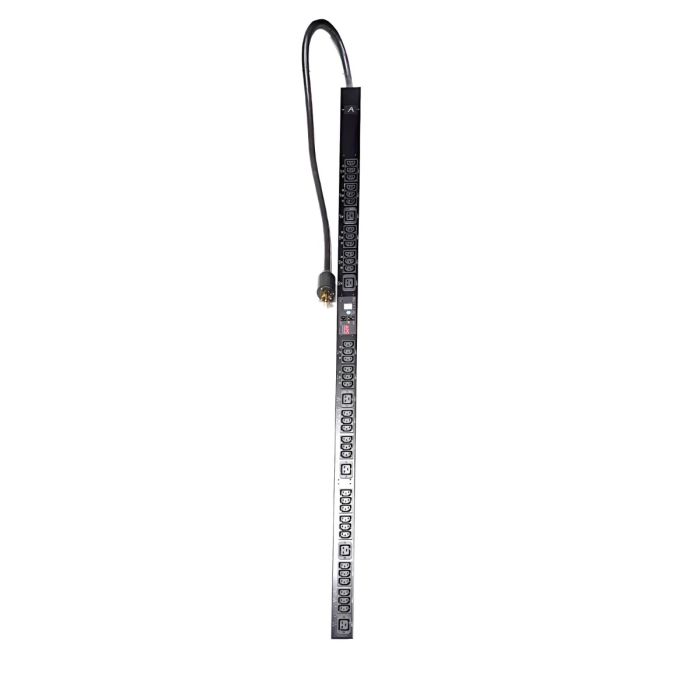

APC AP7864 Rack PDU, Metered, Zero U, 5.7kW, 208V, (36)C13 & (6)C19

Add to Wishlist

APC AP7864 Features:

  • Toolless Mounting Capabilities- Units do not require additional tools to mount into APC NetShelter VX, which allows the users to quickly and easily mount units in the rear of the enclosure.
  • Vertical Mounting Capabilities- Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter VX enclosures.

AED4,999.00

Add to Wishlist

The APC AP7864 is a Metered Rack PDU , Input: 208V 3PH , Input Connections: NEMA L21-20P , Cord Length: 3 feet ( 0.91 meters ) , Output: 208V , Output Connections: IEC 320 C13,IEC 320 C19

APC AP7864 Metered Rack PDU Zero U, 5700W, 20A, 208V, (36)C13 & (6)C19
Input: 208V 3PH
Input Connections: NEMA L21-20P
Cord Length:3 feet ( 0.91 meters)
Output: 208V
Output Connections: IEC 320 (36)C13, IEC 320 (6)C19
Refurbished PDU
1 Year Warranty Included

SKU: APC AP7864 Category: Tag:

APC AP7864 Specifications:

Mechanical
Height 70.00 in. (1778 mm.)
Width 2.19 in. (56 mm.)
Depth 1.73 in. (44 mm.)
Weight 12.00 lbs. (5.45 kg.)
Environmental
Operating Environment 32 – 113 °F (0 – 45 °C)
Operating Relative Humidity 0%
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Temperature -13 – 149 °F (-25 – 65 °C)
Storage Relative Humidity 0%
Storage Elevation 0-50000 feet (0-15000 meters)
Output
Nominal Output Voltage 208V
Maximum Total Current Draw per Phase 20A
Output Connections (36) IEC 320 C13
(6) IEC 320 C19
Always on Outlets 42
Overload Protection No
Input
Nominal Input Voltage 208V 3PH
Input Frequency 50/60 Hz
Regulatory Derated Input Current (North America) 16A
Input Connections NEMA L21-20P
Cord Length 3 feet (0.91 meters)
Number of Power Cords 1
Maximum Input Current per phase 20A
Load Capacity 5700 VA
