APC AP9560 Rack PDU, Basic, 1U, 30A, 120V, (10) 5-20

Add to Wishlist
  • Supports up to 30A
  • Equipped with 10 NEMA 5-20R outlets for versatile power connections
  • Horizontal mounting to fit various rack configurations
  • 12 ft cord for flexible installation

AED3,199.00

Add to Wishlist

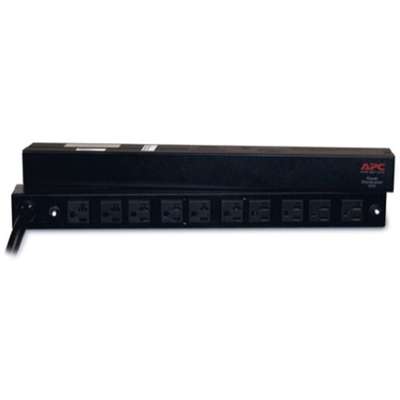

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 30A and operates at 120V. The PDU features 10 NEMA 5-20R outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA L5-30P plug. The unit is designed for reliable power distribution and includes rack mounting brackets and a user manual.

SKU: AP9560 Category: Tag:

General Information

Attribute Details
Product Name AP9560 Rack PDU, Basic, 1U, 30A, 120V, (10) 5-20
Manufacturer Part Number AP9560
Product Line Basic Rack
Packaged Quantity 1 Each
Product Type PDU

Technical Information

Attribute Details
PDU Type Basic
Plug / Connector Type NEMA L5-30P
Receptacle Type NEMA 5-20R
Receptacle Detail 10 x NEMA 5-20R
Number of Protected Output Receptacles 10
Protection Type Overload Protection

Power Description

Attribute Details
Input Voltage 100 V / 120 V
Input Voltage Range 120 V AC – 132 V AC
Output Voltage 120 V AC
Power Rating (VA) 2880 VA

Physical Characteristics

Attribute Details
Color Family Black
Product Color Black

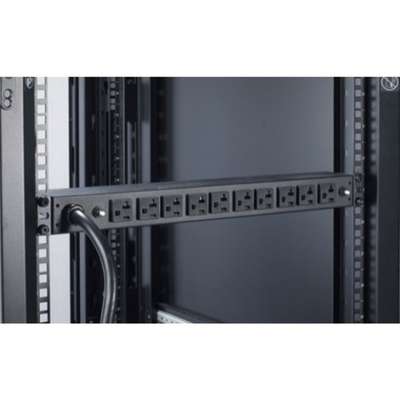

Mounting Orientation Horizontal
Mount Type Rack-mountable
Placement Front / Rear
Rack Height 1U
Cord Length 12 ft
Height 1.7″
Width 17.6″
Depth 2.2″
