Power distribution unit
APC Horizontal Rack PDU Extender Basic – 2U 30A (12) 5-20R and 120V Out
- Supports up to 30A
- Equipped with 12 NEMA 5-20R outlets for versatile power connections
- Horizontal mounting to fit various rack configurations
- 28 ft cord for flexible installation
AED5,799.00

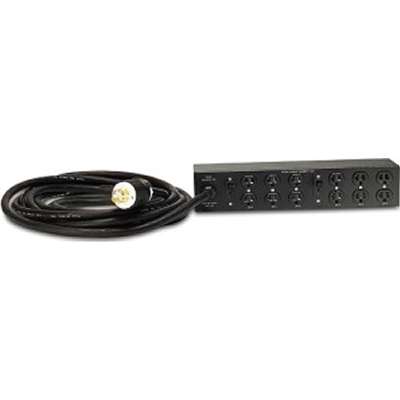

It is a basic rack PDU with a 2U horizontal mounting design. It supports a maximum input current of 30A and operates at 120V. The PDU features 12 NEMA 5-20R outlets, providing connections for IT equipment. It includes a 28-foot power cord with a NEMA L14-30P plug. The unit is designed for reliable power distribution and includes an installation guide and rack mounting brackets.
| Category | Attribute | Value |
|---|---|---|
| General Information | Product Name | Horizontal Rack PDU Extender Basic – 2U 30A (12) 5-20R and 120V Out |
| Manufacturer Part Number | AP7582 | |
| Product Line | Basic Rack | |
| Packaged Quantity | 1 Each | |
| Product Type | PDU | |
| Technical Information | PDU Type | Basic |
| Plug / Connector Type | NEMA L14-30P | |
| Receptacle Type | NEMA 5-20R | |
| Receptacle Detail | 12 x NEMA 5-20R | |
| Power Description | Input Voltage | 200 V, 208 V |
| Output Voltage | 120 V AC | |
| Power Rating (VA) | 4992 VA | |
| Physical Characteristics | Color Family | Black |
| Product Color | Black | |
| Mounting Orientation | Horizontal | |
| Mount Type | Rack-mountable | |
| Placement | Front, Rear | |
| Rack Height | 2U | |
| Cord Length | 28 ft | |
| Height | 3.5″ | |
| Width | 17.2″ | |
| Depth | 3.5″ |
