Power distribution unit

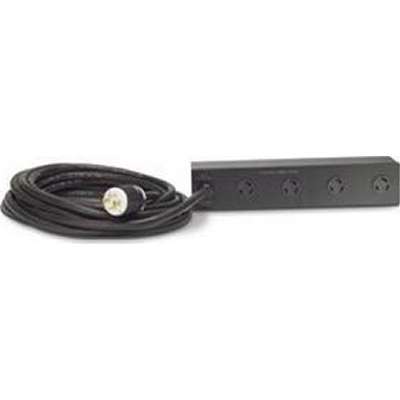

APC Horizontal Rack PDU Extender Basic – 2U 30A (4) L6-30R and 208V Out
- Supports up to 30A
- Equipped with 4 NEMA L6-30R outlets for versatile power connections
- Horizontal mounting to fit various rack configurations
- 28 ft cord for flexible installation
AED5,799.00
It is a basic rack PDU with a 2U horizontal mounting design. It supports a maximum input current of 30A and operates at 200 and 208V. The PDU features 4 NEMA L6-30R outlets, providing reliable power distribution for IT equipment. It includes a 28-foot power cord with a NEMA L14-30P plug. The unit is designed for robust performance and includes an installation guide and rack mounting brackets.
| Category | Attribute | Details |
|---|
| General Information | Product Name | Horizontal Rack PDU Extender Basic – 2U 30A (4) L6-30R and 208V Out |
| Manufacturer Part Number | AP7584 |
| Product Line | Basic Rack |
| Packaged Quantity | 1 Each |
| Product Type | PDU |
| Technical Information | PDU Type | Basic |
| Plug / Connector Type | NEMA L14-30P |
| Receptacle Type | NEMA L6-30R |
| Receptacle Detail | 4 x NEMA L6-30R |
| Power Description | Input Voltage | 200 V, 208 V |
| Input Voltage Range | 120 V AC – 208 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 4992 VA |
| Physical Characteristics | Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Placement | Front, Rear |
| Rack Height | 2U |
| Cord Length | 28 ft |
| Height | 3.5″ |
| Width | 17.2″ |
| Depth | 3.5″ |
| Miscellaneous | Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Family | Basic Rack |
| For Country / Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| REACH Declaration URL | REACH Declaration |
| EU RoHS Declaration URL | EU RoHS Declaration |
| Environmental Profile | Environmental Disclosure |
| End of Life Manual | End of Life Manual |
| REACH Free of SVHC | Yes |
| Lead Free | Yes |
| Mounting Preference | Lower |
| Certifications & Standards | cUL Listed, METI Denan, UL Listed |
