APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13, 2 C19 OUT, 50/60 Hz

Add to Wishlist

Quick tech specs

  • Minimized downtime disruption with Field-replaceable NMC
  • Dual input power cords to enhance uptime for critcal loads
  • Seamless switching with transfer time 10ms
  • Gigabit Ethernet support for faster Communication
  • Monitor temperature and humidity efficiently
  • Connect and manage up to 32 Rack ATSs from one IP address
  • Supports APC Wi-fi USB device for cableless installation & setup
  • Remote management via Web UI, CLI, SNMP or EcoStruxure expert

AED13,799.00

Add to Wishlist

Know your gear

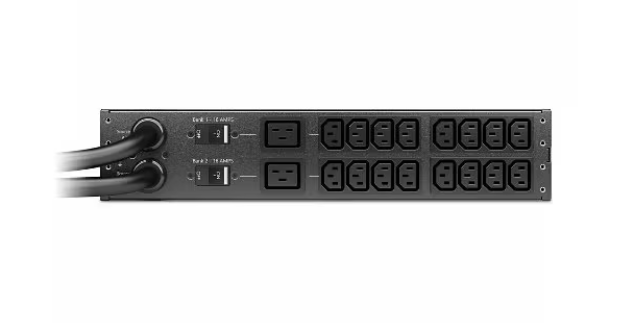

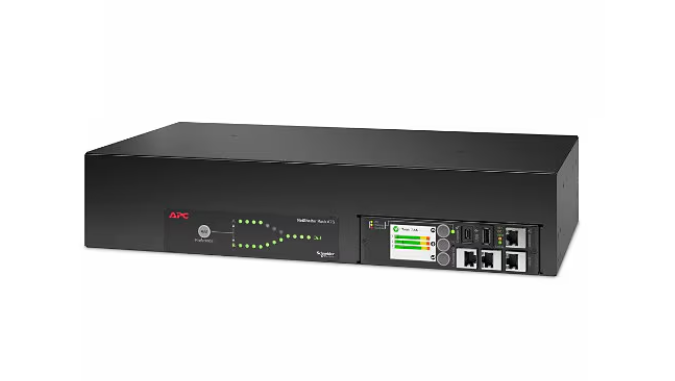

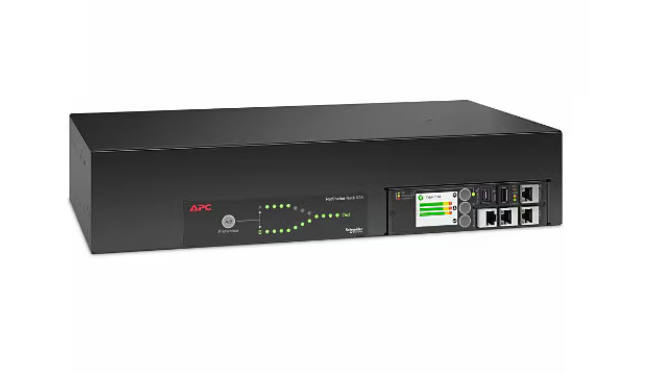

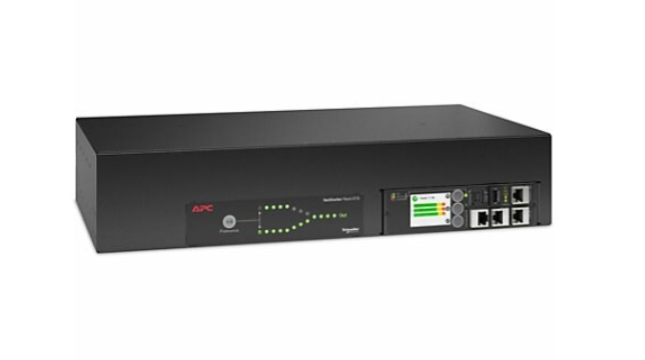

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4424A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4424A is single phase 2U Rack ATS with 32A rated current, 230V rated voltage and 7400VA load capacity. It comes with inbuilt circuit breaker protection, 2 IEC 309 inlet and 16 IEC C13, 2 IEC C19 outlet sockets.  Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
SKU: AP4424A Category: Tag:
Overview
Specification Details
Brand APC by Schneider Electric
Product Line NetShelter
Manufacturer Schneider Electric SA
Network & Communication
Specification Details
Form Factor Rack-mountable
Power
Specification Details
Current 32 ampere
Input Voltage 230 V AC
Output Voltage 230 V AC
Plug Type IEC 60309 32A 2P+E
Cables
Specification Details
Cord Length 96 inch
Technical Information
Specification Details
Mercury Free Yes
Product Information
Specification Details
Country United States
Product Type Automatic Transfer Switch
Dimensions & Weight
Specification Details
Height 3.5 inch
Height (Rack Units) 2U
Weight 15.30 lb
Width 17 inch
Depth 9.3 inch
Physical Characteristics
Specification Details
Color Family Black
Color Category Black
