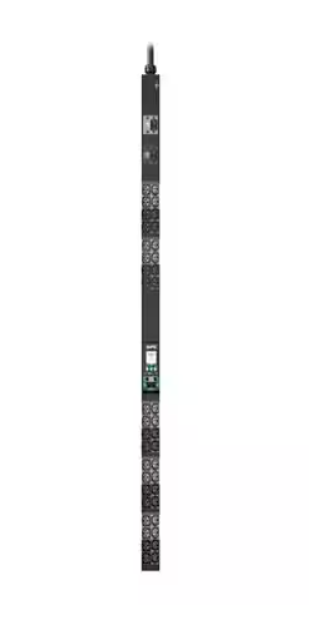

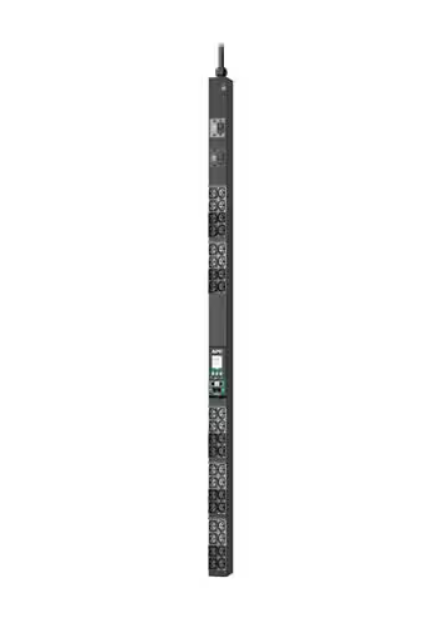

APC NetShelter Rack PDU Advanced, Switched, 5.0kW, 1Phase, 208V, 30A, L6-30P, 40 Outlet


Quick tech specs

  • Input: 1PH, NEMA L6-30P
  • Full-featured network management capability
  • Active power measurements (volts, amps, kW, kWh)
  • Outlets: (20) C13/C15/C19/C21, (20) C13/C15

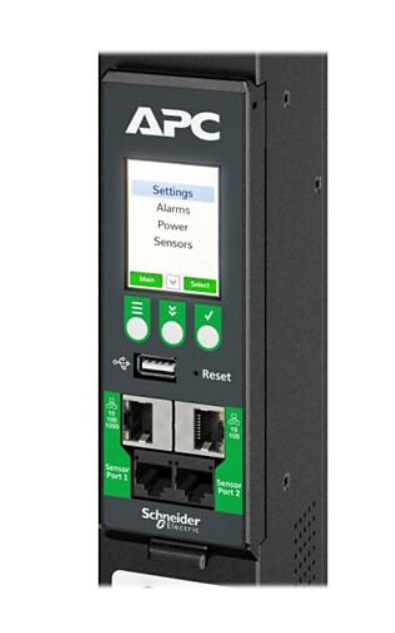

  • Interactive LCD display

AED17,299.00

Know your gear

APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. Switched outlets to turn outlets on or off remotely. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 40 outlets in a 2.2″ wide form factor. Outlets on the PDUs are color coded by breaker to simplify deployment. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today’s high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected.
SKU: APDU10151SW Category: Tag:
Category Attribute Value
Overview Brand APC by Schneider Electric
Product Line NetShelter
Manufacturer Schneider Electric SA
Network & Communication Form Factor Rack
Connectivity Network (RJ-45) Yes
Display & Graphics Video Interfaces IEC 60320 C13/C15, IEC 60320 C13/C15/C19/C21
Power Input Current 30 ampere
Input Voltage 208 V
Input Voltage Range 200 V AC – 240 V AC
Output Voltage 208 V AC

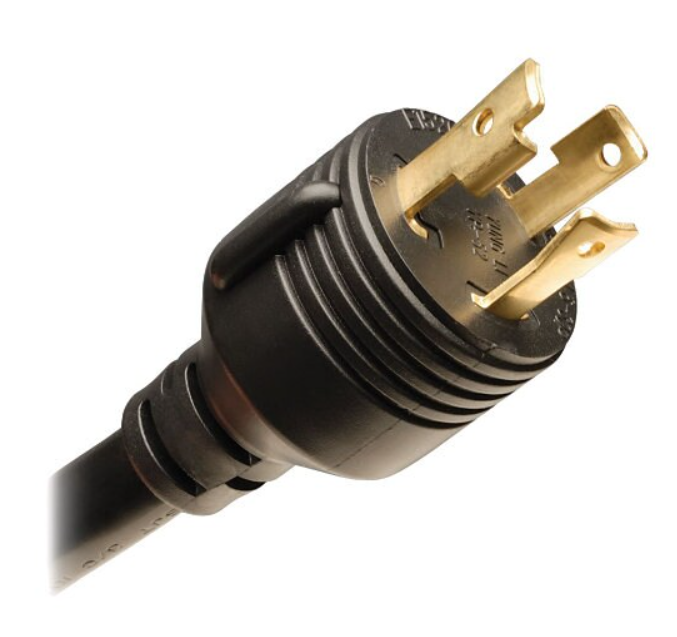

Plug Type NEMA L6-30P
Power Rating (VA) 4992 volt ampere per kilogram
Power Rating (Watt) 5000 watt
Cables Cord Length 9.84 ft
Technical Information PDU Type Switched
Phase Single Phase
Product Information Country United States
Country of Origin India
Mounting Orientation Vertical
Product Type PDU
Protection Type Overload Protection
Dimensions & Weight Height 58.7 inch
Height (Rack Units) 0U
Weight 16.98 lb
Width 2.2 inch
Depth 3 inch
Physical Characteristics Color Family Black
Color Category Black
