Transfer Switches
APC Rack Ats, 208V, 20A, C20 In, (8) C13 (1) C19 Out
- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Dual input power cords to enhance uptime for critcal loads
- Connect and manage up to 32 Rack ATSs from one IP address
- Seamless switching with transfer time 10ms
- Supports APC Wi-fi USB device for cableless installation & setup
- Gigabit Ethernet support for faster Communication
- Remote management via Web UI, CLI, SNMP or EcoStruxure expert
- APC NMC3 integrated for enhanced cyber security
AED12,999.00

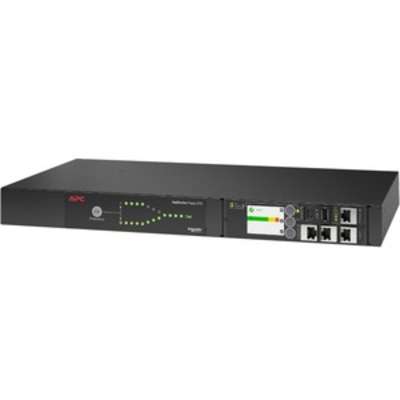

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4434A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4434A is single phase 1U Rack ATS with 20A rated current, 208V rated voltage and 3300VA load capacity. It comes with 2 IEC C20- inlet and 8 IEC C13, 1 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security.
| Category | Specification |
|---|
| General Information |
| Product Name | Rack ATS, 208V, 20A, C20 In, (8) C13 (1) C19 Out |
| Manufacturer Part Number | AP4434A |
| Product Line | NetShelter |
| Product Type | Automatic Transfer Switch |
| Technical Information |
| Plug / Connector Type | IEC 60320 C20 16A (2P+E) |
| Receptacles | 8 x IEC 60320 C13, 1 x IEC 60320 C19 |
| Power Description |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Current | 20 A |
| Physical Characteristics |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7″ |
| Width | 17″ |
| Depth | 9.3″ |
| Miscellaneous |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Mercury Free | Yes |
| For Country / Region | United States |
