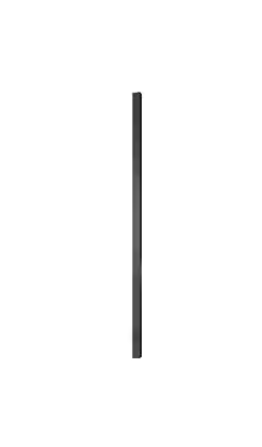

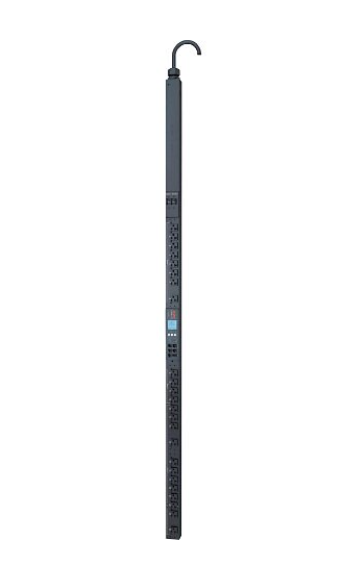

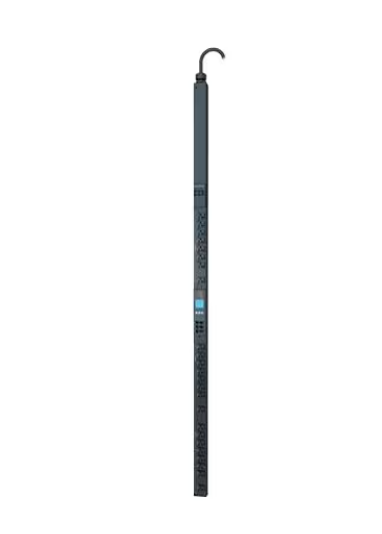

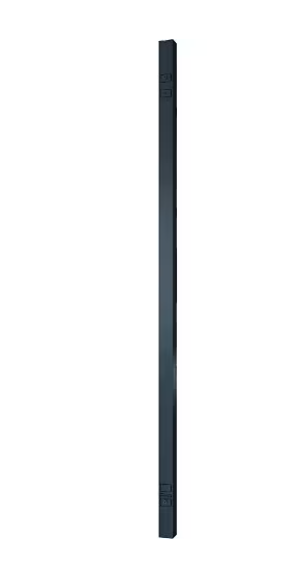

APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 100V to 120V, 24 NEMA 5-20R sockets


Quick tech specs

  • Power sequencing delays allow users to define the order in which to power up or down attached equipment
  • Current metering provides real-time remote monitoring of connected loads
  • Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding
  • Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles

AED15,699.00

Know your gear

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by Struxureware for Data Centers using Data Center Expert and Data Center Operations with Capacity and Change modules

SKU: AP8632 Category: Tag:
Overview
Specification Details
Brand APC by Schneider Electric
Manufacturer Schneider Electric SA
Network & Communication
Specification Details
Form Factor Tower
Display & Graphics
Specification Details
Video Interfaces NEMA 5-20R
Video
Specification Details
Camera Mechanical Design Rack-mountable
Power
Specification Details
Input Current 30 ampere
Input Voltage 100 V, 120 V
Output Voltage 100 V AC, 120 V AC
Plug Type NEMA L5-30P
Power Rating (VA) 2880 volt ampere per kilogram
Cables
Specification Details
Cables 1
Cord Length 9.84 ft
Technical Information
Specification Details
Management Web, SNMP, Telnet
Mercury Free Yes
PDU Type Metered-by-Outlet
Product Information
Specification Details
Country United States
Mounting Orientation Vertical
Included Quantity 1-Each
Product Type PDU
Protection Type Overload Protection
Dimensions & Weight
Specification Details
Height 72 inch
Height (Rack Units) 0U
Weight 17.75 lb
Width 2.2 inch
Depth 2 inch
Physical Characteristics
Specification Details
Color Family Black
Color Category Black
