Power distribution unit

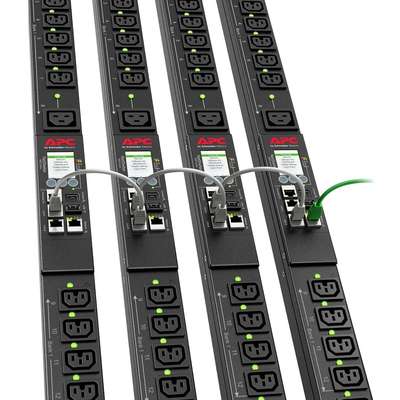

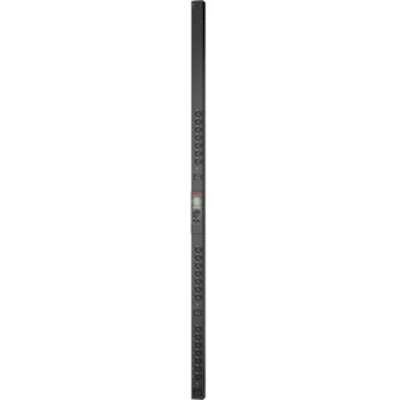

APC Rack PDU 9000 Switched Zerou 20A 208V 21 C13 & 3 C19 L620 Cord
- It can handle a maximum power capacity of 11.5kW
- It includes 21 IEC C13 and C15 outlets and 3 IEC C19 and C21 outlets
- The ZeroU mounting design helps save rack space and improves cable management
- Allows for remote monitoring and control
AED11,899.00
It is a switched rack PDU with maximum current capacity of 20A and an input voltage of 208V. It features 21 C13 and C15 outlets and 3 C19 and C21 outlets, connected via an IEC 60320 L6-20P plug. This PDU is designed for ZeroU mounting.
General Information
| Attribute | Details |
|---|---|
| Product Name | Rack PDU 9000 Switched Zerou 20A 208V 21 C13 & 3 C19 L620 Cord |
| Manufacturer Part Number | APDU9959NA3 |
| Product Line | NetShelter |
| Product Series | 9000 |
| Product Type | PDU |
Technical Information
| Attribute | Details |
|---|---|
| PDU Type | Switched |
| Plug / Connector Type | IEC 60320 L6-20P |
| Receptacle Type | IEC 60320 C19/C21, IEC 60320 C13/C15 |
| Receptacle Detail | 3 x IEC 60320 C19/C21 21 x IEC 60320 C13/C15 |
| Protection Type | Circuit Protection, Accidental Power Shutdown |
Interfaces / Ports
| Attribute | Details |
|---|---|
| Network (RJ-45) | Yes |
Power Description
| Attribute | Details |
|---|---|
| Input Voltage | 200 V, 208 V |
| Output Voltage | 200 V AC, 208 V AC |
| Power Rating (VA) | 3300 VA |
| Power Rating (W) | 17.30 kW |
| Input Current | 20 A |
Physical Characteristics
| Attribute | Details |
|---|---|
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Form Factor | Tower |
| Placement | Side |
| Rack Height | 0U |
| Height | 70.7″ |
| Width | 2.2″ |
| Depth | 1.8″ |
