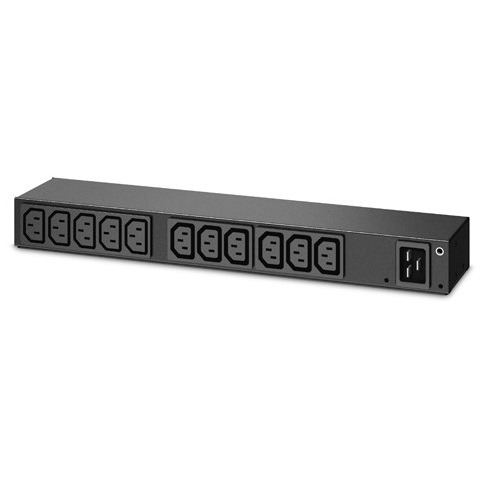

APC Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (13) C13

Add to Wishlist

AED499.00

Add to Wishlist

APC Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (13) C13 – AP6020A



  • Reliable rack power distribution

  • Includes: Installation guide, Safety guide

  • Power Cable Excluded

View Product Overview





Overview

AP6020A Features

Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (13) C13

Reliable rack power distribution

Includes: Installation guide, Safety guide



Basic Rack PDU Features & Benefits

Marketing Features

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most – in the racks near the equipment.

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Low Cost Power Distribution

Provides a number of outlets to bring power to rack equipment at an affordable price.

Total Cost of Ownership

Low Cost Power Distribution

Provides a number of outlets to bring power to rack equipment at an affordable price.

Agility

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most – in the racks near the equipment.

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections
SKU: AP6020A Category: Tag:
Weight 1.5 kg

Detailed Tech Specification



Output

Maximum Total Current Draw

20

Output Connections

(13) IEC 320 C13 (Battery Backup)

Input

Nominal Input Voltage

100V, 120V, 200V, 208V, 230V, 240V

Input frequency

50/60 Hz

Input Connections

IEC-320 C20

Acceptable Input Voltage

100-240VAC

Maximum Input Current

20A

Maximum Line Current

20A

Regulatory Derated Input Current (North America)

16A

Physical

Maximum Height

388mm, 38.8CM

Maximum Width

44mm, 4.4CM

Maximum Depth

93mm, 9.3CM

Rack Height

1U

Net Weight

1.5KG

Shipping weight

2.02KG

Shipping Height

436mm, 43.6CM

Shipping Width

210mm, 21.0CM

Shipping Depth

76mm, 7.6CM

Color

Black

Units per Pallet

100.0

Conformance

Approvals

cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE

Standard warranty

2 years repair or replace

Sustainable Offer Status

RoHS

Compliant

REACH

REACH: Contains No SVHCs
