Power distribution unit

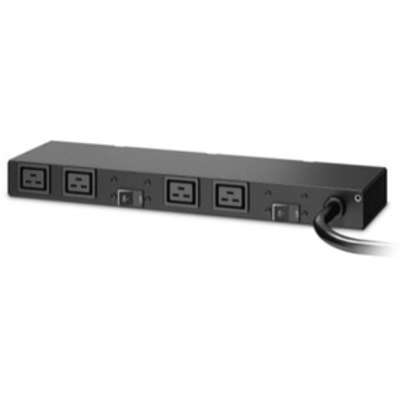

APC Rack PDU Basic 0U/1u 208V 30A 4 C19
- Supports up to 30A, 208V power distribution
- Equipped with 4 C19 outlets for versatile power connections
- Can be mounted horizontally or vertically
- Includes toolless mounting kit for quick setup
- The unit is designed for reliable power distribution and includes an installation guide and safety guide.
AED2,299.00
It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 30A and operates at 208V. The PDU features 4 IEC 60320 C19 outlets, providing connections for high-power IT equipment. It includes a 12-foot power cord with a NEMA L6-30P plug. The unit is designed for reliable power distribution and includes an installation guide and safety guide.
| Category | Attribute | Value |
|---|---|---|
| General Information | Product Name | Rack PDU Basic 0U/1U 208V 30A 4 C19 |
| Manufacturer Part Number | AP6031A | |
| Product Line | Basic | |
| Packaged Quantity | 1 | |
| Product Type | PDU | |
| Technical Information | PDU Type | Basic |
| Plug / Connector Type | NEMA L6-30P | |
| Plug / Connector Detail | 1 x NEMA L6-30P | |
| Receptacle Type | IEC 60320 C19 | |
| Receptacle Detail | 4 x IEC 60320 C19 | |
| Protection Type | Overcurrent Protection | |
| Power Description | Input Voltage | 200 V, 208 V |
| Output Voltage | 200 V AC, 208 V AC | |
| Input Current | 30 A | |
| Physical Characteristics | Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable | |
| Form Factor | Tower | |
| Placement | Front, Rear | |
| Rack Height | 1U | |
| Cord Length | 12 ft | |
| Height | 1.7″ | |
| Width | 17.2″ | |
| Depth | 5″ | |
| Miscellaneous | Country of Origin | India |
| Environmentally Friendly | Yes | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) | |
| Product Family | Basic | |
| For Country / Region | United States | |
| Optimized Energy Efficiency | Yes | |
| Product Take Back Program | Yes | |
| REACH Free of SVHC | Yes | |
| Lead Free | Yes | |
| Mounting Preference | No Preference | |
| Certifications & Standards | cUL Listed, UL Listed |
