| Category | Attribute | Value |
|---|

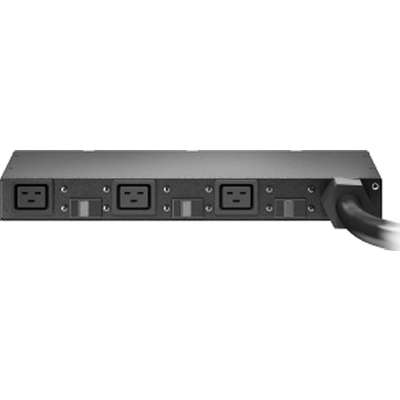

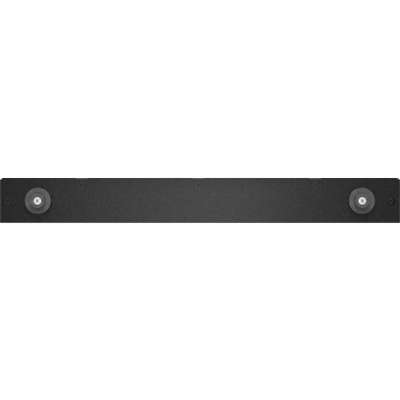

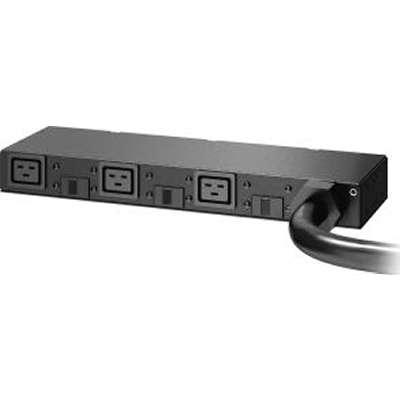

| General Information | Product Name | Rack PDU Basic 0U/1U 208V 8.6KW 3 C19 |
| Product Series | Basic |
| Product Model | AP6037A |
| Product Type | PDU |
| Technical Information | PDU Type | Basic |
| Plug / Connector Type | NEMA L15-30P |
| Plug / Connector Detail | 1 x NEMA L15-30P |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Detail | 3 x IEC 60320 C19 |
| Protection Type | Overcurrent Protection |
| Power Description | Input Voltage | 200 V, 208 V |
| Output Voltage | 230 V AC |
| Power Rating (Watt) | 8600 W |
| Input Current | 30 A |
| Physical Characteristics | Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Form Factor | Tower |
| Placement | Front |
| Rack Height | 1U |
| Cord Length | 12 ft |
| Height | 1.7″ |
| Width | 15.3″ |
| Depth | 5″ |
| Miscellaneous | Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Family | Basic |
| Mercury Free | Yes |
| For Country / Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| REACH Free of SVHC | Yes |
| Toxic Heavy Metal Free | Yes |
| Mounting Preference | No Preference |
| Certifications & Standards | cUL Listed, UL Listed |
