It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 60A and operates at 208V. The PDU features 21 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. It includes a 10-foot power cord with an IEC 60309 60A 2P + PE plug. The unit is designed for reliable power distribution and includes an installation guide and safety guide.
Power distribution unit

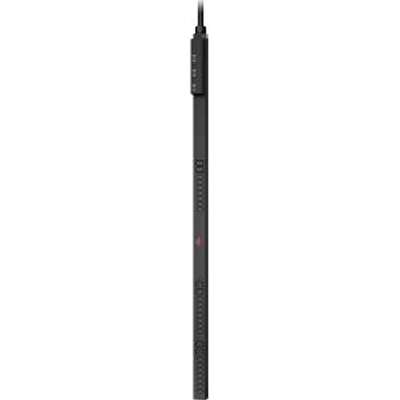

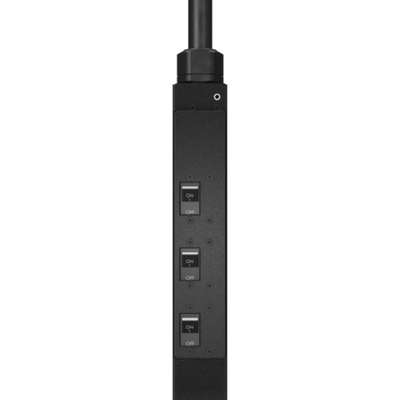

APC Rack PDU Basic Vertical 208V 60A 21 C13 6 C19
- Features 21 C13 and 6 C19 outlets for comprehensive power distribution
- Zero U design for efficient use of rack space
- Supports up to 60A, 208V power distribution
- Includes toolless mounting kit for quick setup
AED7,599.00
Category | Attribute | Value |
---|
General Information | Product Name | Rack PDU Basic Vertical 208V 60A 21 C13 6 C19 |
Product Series | Basic |
Product Model | AP6007A |
Product Type | PDU |
Technical Information | PDU Type | Basic |
Plug / Connector Type | IEC 60309 60A 2P+PE |
Receptacle Type | IEC 60320 C13, IEC 60320 C19 |
Receptacle Detail | 21 x IEC 60320 C13 6 x IEC 60320 C19 |
Power Description | Input Voltage | 208 V |
Output Voltage | 208 V AC |
Power Rating (VA) | 10800 VA |
Input Current | 60 A |
Physical Characteristics | Mounting Orientation | Vertical |
Mount Type | Rack-mountable |
Form Factor | Tower |
Placement | Rear |
Rack Height | 0U |
Cord Length | 10 ft |
Height | 64″ |
Width | 2.2″ |
Depth | 1.7″ |
Miscellaneous | Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Product Family | Basic |
For Country / Region | United States |
Optimized Energy Efficiency | Yes |
Product Take Back Program | Yes |
REACH Free of SVHC | Yes |
Lead Free | Yes |
Mounting Preference | No Preference |
Certifications & Standards | cUL Listed, UL Listed |
