Power distribution unit

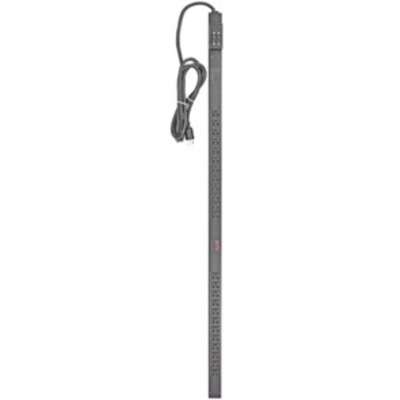

APC Rack PDU Basic Zero U 30A 100V 24 5-15
- Toolless Rack Mounting Capabilities – Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
- Vertical Mounting Capabilities – Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
AED3,699.00
| General Information | |
| Product Name | Rack PDU Basic Zero U 30A 100V 24 5-15 |
| Product Model | AP7532J |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug / Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 24 x NEMA 5-15R |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC |
| Power Rating (VA) | 3000 VA |
| Input Current | 30 A |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 63.7″ |
| Width | 2.2″ |
| Depth | 1.7″ |
