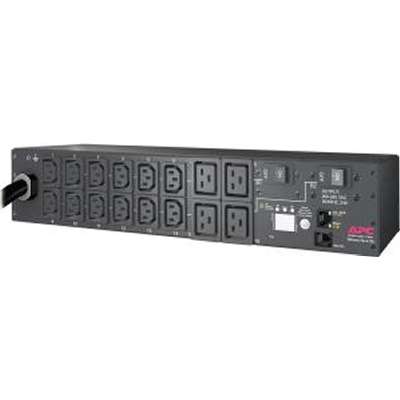

APC Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19

Add to Wishlist
  • Ideal for colocation
  • Helps balance loads by measuring and recording amps with +/- 5% accuracy
  • Empowers IT staff with real-time remote monitoring of connected loads
  • Alerts of potential circuit overloads with user-defined alarms
  • Upgraded to support TLS 1.2 cyber protoco
  • Support for upto four simultaneous user sessions

AED9,399.00

Add to Wishlist

APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles AP7811B offers real-time remote monitoring and user-defined alarms which helps prevent potential circuit overloads that can cause accidental power loss to critical equipment Easily access, configure, and monitor this metered PDU from remote locations A network management interface provides standards-based management via Web, SNMP, and Command Line Interface This Metered PDU from APC provides (12) IEC C13 and (4) IEC C19 outlets to supply power to rack equipment Active current measurements (amps), User-customizable alarms and warnings and Embedded log memory to record/review/ report historic data to local user An environmental monitoring port for external temperature/ humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH) Easy to mount this Horizontal PDU in racks or enclosures and occupies 2U of rack Space Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable

SKU: AP7811B1 Category: Tag:

General Information

Attribute Details
Product Name Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19
Manufacturer Part Number AP7811B
Product Line Metered Rack
Product Type PDU

Technical Information

Attribute Details
PDU Type Metered
Plug / Connector Type NEMA L6-30P
Plug / Connector Detail 1
Receptacle Type IEC 60320 C13, IEC 60320 C19
Receptacle Detail 12 x IEC 60320 C13
4 x IEC 60320 C19

Power Description

Attribute Details
Input Voltage 200 V, 208 V, 230 V
Output Voltage 208 V AC
Input Current 30 A

Physical Characteristics

Attribute Details
Mounting Orientation Horizontal
Mount Type Rack-mountable
Placement Front, Rear
Rack Height 2U
Cord Length 12 ft
Height 3.5″
Width 17.5″
Depth 4.4″
