04 3550600 052 7036860

APC Rack PDU, Metered, Zerou, 14.4KW, 208V, (24) C13, (4) C19, (2) L6-30R;10 Cord

Add to Wishlist
  • Features 24 IEC 60320 C13, 4 IEC 60320 C19, and 2 NEMA L6-30R outlets for extensive power distribution
  • Vertical mounting to save valuable rack space
  • Supports up to 40A, 208V power distribution, ensuring reliable power delivery
  • Includes a cord retention bracket and toolless mounting kit for quick setup

AED19,099.00

Add to Wishlist

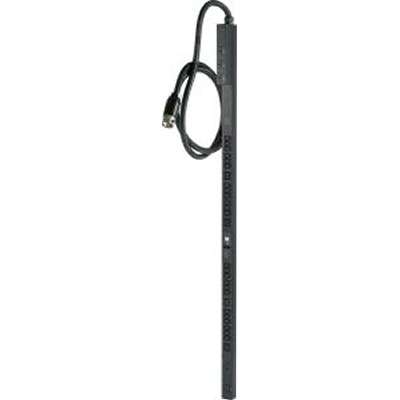

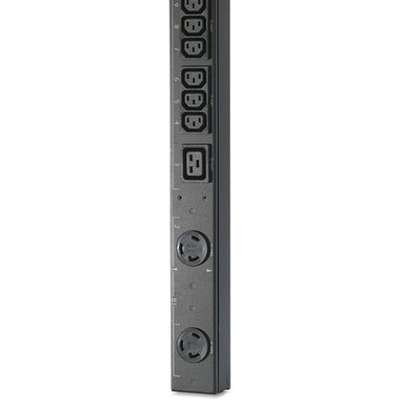

It is a metered rack PDU designed for Zero U vertical mounting. It supports a maximum current of 40A and operates at 208V. The PDU features 24 IEC 60320 C13, 4 IEC 60320 C19, and 2 NEMA L6-30R outlets. It has a load capacity of 14400 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.

SKU: AP7899B1 Category: Tag:
Category Attribute Value
General Information Product Name Rack PDU, Metered, ZeroU, 14.4KW, 208V, (24) C13, (4) C19, (2) L6-30R;10 Cord
Manufacturer Part Number AP7899B
Product Type PDU
Technical Information PDU Type Metered
Phase Three Phase
Plug / Connector Type CS8365
Plug / Connector Detail 1 x CS8365
Receptacle Type IEC 60320 C19, NEMA L6-30R, IEC 60320 C13
Receptacle Detail 4 x IEC 60320 C19
2 x NEMA L6-30R
24 x IEC 60320 C13
Protection Type Overload Protection
Power Description Input Voltage 208 V
Output Voltage 208 V AC
Power Rating (Watt) 14.40 kW
Input Current 50 A
Physical Characteristics Mounting Orientation Vertical
Mount Type Rack-mountable
Placement Side
Rack Height 0U
Cord Length 10 ft
Height 70″
Width 2.2″
Depth 3.7″
