Power distribution unit
APC Rack PDU, Switched, Zerou, 12.5KW, 208V, (21) C13& (3) C19;10 Cord
- It can handle a maximum power capacity of 12.5kW, suitable for demanding applications

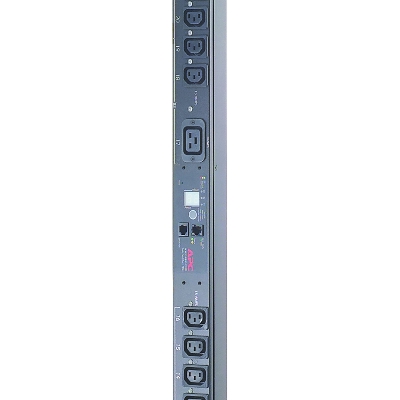

- It includes 21 IEC C13 outlets and 3 IEC C19 outlets, offering extensive connectivity

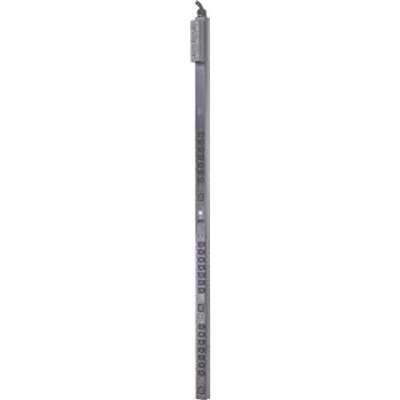

- The ZeroU mounting design helps save rack space and improves cable management
- Allows for remote monitoring and control, enhancing power management capabilities
- The unit is UL Listed, ensuring high safety and performance standards.
AED18,699.00
It is a switched rack PDU with a maximum current capacity of 35A and an input voltage of 208V. It includes 21 IEC 60320 C13 outlets and 3 IEC 60320 C19 outlets. The PDU has a ZeroU form factor and a cord length of 10 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is UL Listed, ensuring high safety and performance standards.
| Category | Attribute | Value |
|---|---|---|
| General Information | Product Name | Rack PDU, Switched, ZeroU, 12.5KW, 208V, (21) C13 & (3) C19; 10 Cord |
| Manufacturer Part Number | AP7998B | |
| Product Type | PDU | |
| Technical Information | PDU Type | Switched |
| Phase | Three Phase | |
| Plug / Connector Type | CS8365 | |
| Receptacle Type | IEC 60320 C19, IEC 60320 C13 | |
| Receptacle Detail | 3 x IEC 60320 C19 21 x IEC 60320 C13 |
|
| Protection Type | Overload Protection | |
| Power Description | Input Voltage | 208 V |
| Output Voltage | 208 V AC | |
| Power Rating (Watt) | 12.50 kW | |
| Input Current | 50 A | |
| Physical Characteristics | Mounting Orientation | Vertical |
| Mount Type | Rack-mountable | |
| Placement | Side | |
| Rack Height | 0U | |
| Cord Length | 10 ft | |
| Height | 70″ | |
| Width | 2.2″ | |
| Depth | 3.5″ | |
| Miscellaneous | Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) | |
| Mercury Free | Yes | |
| For Country / Region | United States | |
| Optimized Energy Efficiency | Yes | |
| Product Take Back Program | Yes | |
| REACH Free of SVHC | Yes | |
| Lead Free | Yes | |
| Mounting Preference | No Preference | |
| Certifications & Standards | cUL Listed, CSA, Industry Canada, UL Listed |
