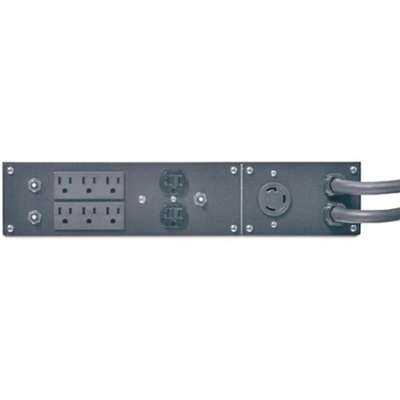

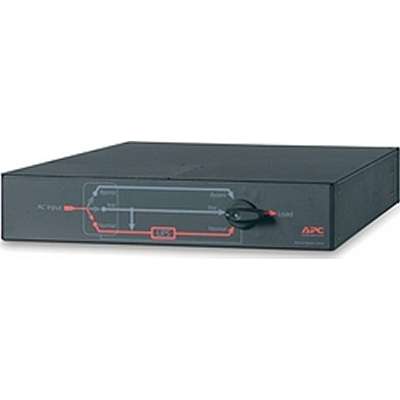

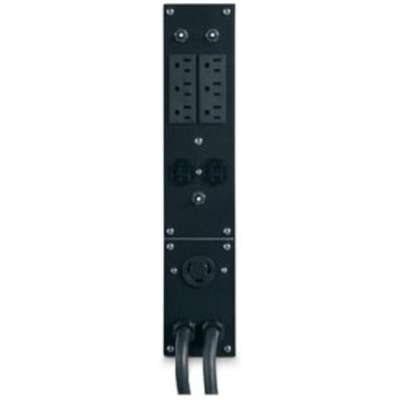

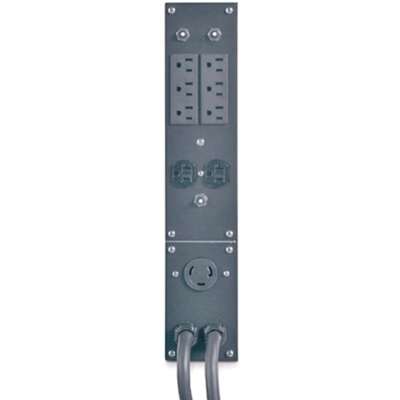

Extremely reliable service bypass panels designed for APC InfraStruXure® Type A, Smart-UPS, and Symmetra UPS products.
| Category | Specification |
|---|
| General Information |
| Product Name | Service Bypass Panel 100-120V 30A BBM L5-30P Input |
| Manufacturer Part Number | SBP3000RM2U |
| Packaged Quantity | 1 Each |
| Product Type | Bypass Panel |
| Technical Information |
| Plug / Connector Type | NEMA L5-30P |
| Receptacles | 6 x NEMA 5-15R, 2 x NEMA 5-20R |
| Protection Type | Overload |
| Power Description |
| Load Capacity (VA) | 3000 W |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC, 120 V AC |
| Current | 24 A, 30 A |
| Physical Characteristics |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.5″ |
| Width | 17″ |
| Depth | 25.5″ |
| Miscellaneous |
| Environmentally Friendly | Yes |
| Environmental Compliance | RoHS (Restriction of Hazardous Substances) |
| Other Information |
| Mercury Free | Yes |
| For Country / Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | Available |
| REACH Declaration | Available |
| EU RoHS Declaration | Available |
| REACH free of SVHC | Yes |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Cord Length | 10 ft |
| Certifications & Standards | CSA, GOST |
