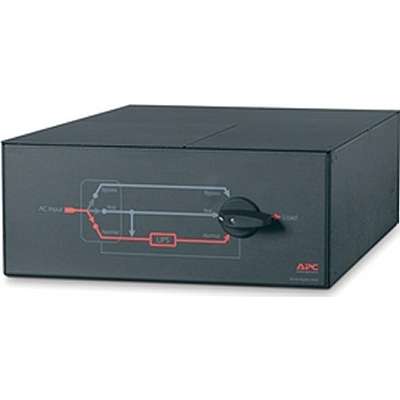

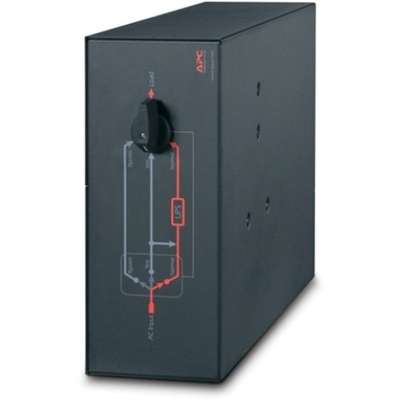

- Extremely reliable service bypass panels designed for APC InfraStruXure® Type A, Smart-UPS, and Symmetra UPS products.
- This service bypass panel operates at 200/208/240V with a 100A capacity, providing robust power management for critical equipment.
- The unit features hardwire input connections, making it suitable for permanent installation in professional data center environments.
- The panel includes make-before-break (MBB) functionality, allowing for safe maintenance operations without power interruption to connected equipment.
- This service bypass panel represents advanced power management technology with its high-capacity design and reliable make-before-break switching capabilities, ensuring maximum uptime for critical systems.
- This bypass panel is ideal for data centers and facilities requiring professional-grade power management. With its 100A capacity and hardwire input, it’s perfect for high-power installations needing reliable maintenance bypass capabilities.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | Service Bypass Panel 200/208/240V 100A MBB Hardwire Input |
| Manufacturer Part Number | SBP10KRMT4U |
| Packaged Quantity | 1 Each |
| Product Type | Bypass Panel |
| Technical Information | |
| Plug / Connector Type | Hard Wire 3-wire |

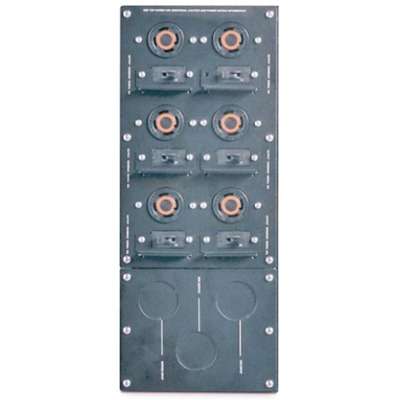

| Receptacles | 3 x NEMA L6-20R, 3 x NEMA L6-30R |
| Protection Type | Overload |
| Power Description | |
| Load Capacity (VA) | 20 kW |
| Input Voltage | 200 V AC, 208 V AC |
| Output Voltage | 200 V AC, 208 V AC |
| Current | 100 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 7″ |
| Width | 17″ |
| Depth | 26.5″ |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | RoHS (Restriction of Hazardous Substances) |
| Other Information | |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| For Country / Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | Available |
| REACH Declaration | Available |
| EU RoHS Declaration | Available |
| REACH free of SVHC | Yes |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Certifications & Standards | CSA, GOST |
